Superior Series

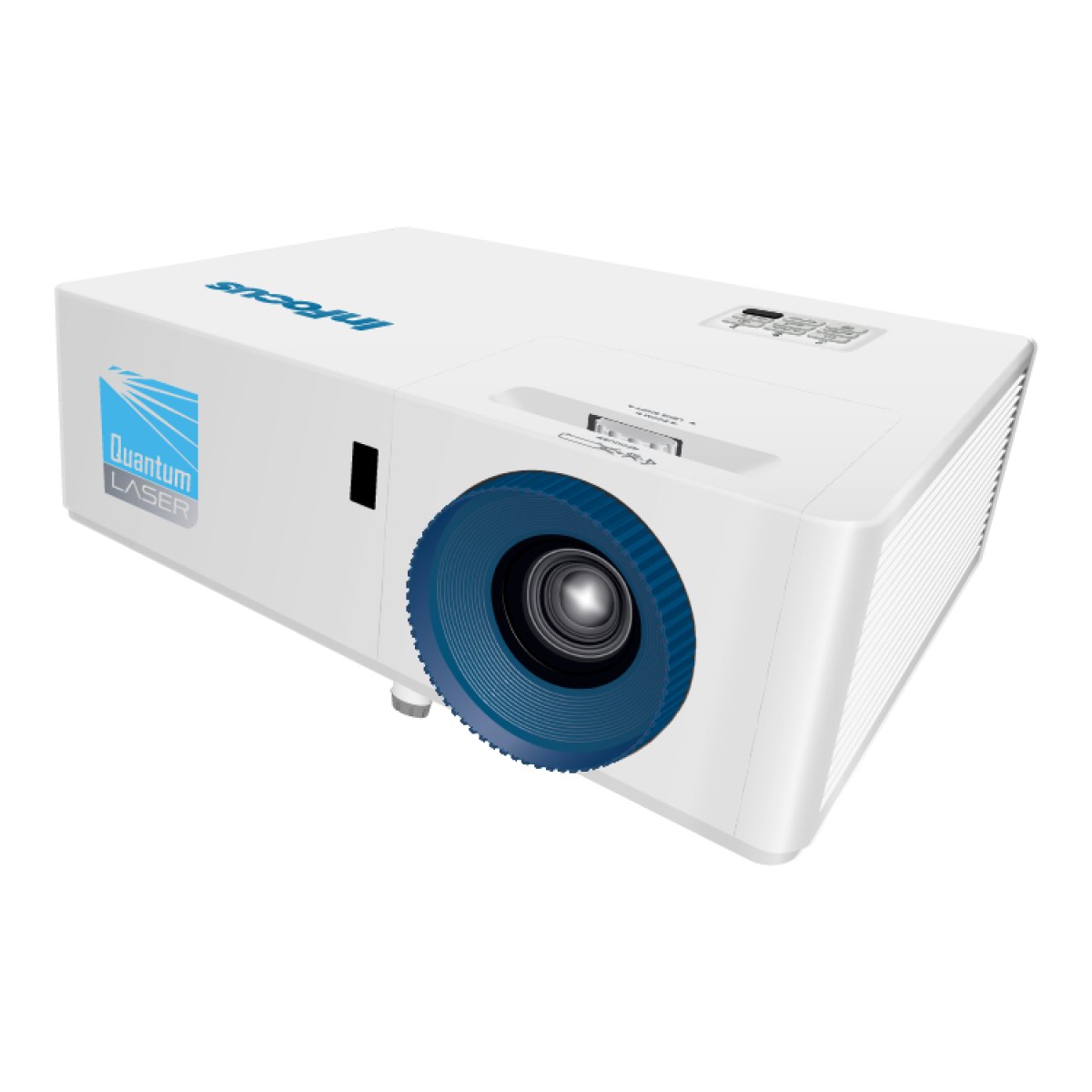

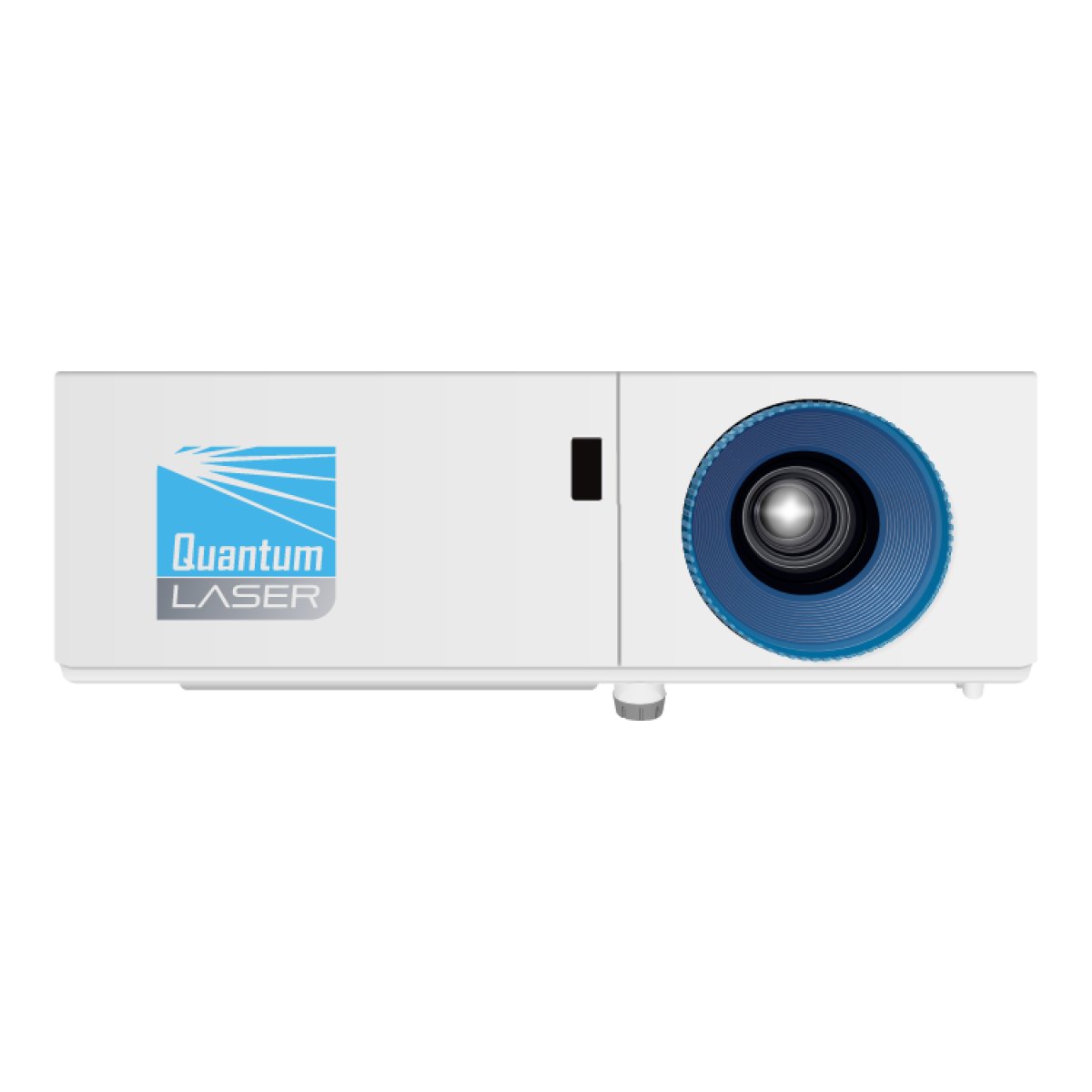

INL2158 - 1080p
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | 1080p / 16:9 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 4000 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms / Pounds) | 4.6 / 10.1 |
SELECT A PRODUCT BELOW
Description
The next generation of Laser Projection is here! With this multi-purpose, multi-use range of laser projectors, you get far more than an image on the wall.
Content bursts to life, and viewing becomes an absolute pleasure and a next-level experience in any environment. Viewing presentations in the workplace offers much more crisp detail and readability.
Engage more in the classroom and have peace of mind that you and your students or classmates are using the latest cutting-edge, environmentally friendly, energy-efficient display technology on the market.
With a IP6X dust resistance rating the Superior Series deliver outstanding dust resistance for 24/7 maintenance-free operation in challenging environments
✨Benefits
Environmentally-Friendly Laser Technology
The Superior Series, part of our Quantum Laser line of projectors, are deployed with solid-state laser light source technology. The complete Quantum Laser range is lamp, filter, mercury, and maintenance-free. The ultra-low energy usage for its class and long-standing durability and performance offers outstanding value and low cost of ownership.
4K Support
Simply stunning image quality with up to 1920 x 1200 native resolution and HDMI 2.0 (HDCP 2.2) 4K support. HDR compatible for like life texture details and improved image depth perception.
SuperSmartProject
Our SuperSmartProject suite of power-saving, power optimisation, and utiliza-tion features and functions combine ease of use and energy saving for your everyday use. Instant power on, signal power on, instant power off, auto power-off, 10 step illumination reduction, and Dynamic Black optimization all enhance your viewing experience while optimizing energy usage.
Flexible Installation
Flexibility for almost every surface with front, rear, and ceiling placement as well as floor to ceiling and ceiling to floor projection, full 360-degree placement across the horizontal axis and not forgetting both landscape and portrait modes ideal for retail display purposes, fixed installations, bars, clubs, and restaurants.
| Image | ||
|---|---|---|
| Vertical Sync. Range (Hz) | 23 ~ 120 | |
| Uniformity (%) | 85 | |
| Horizontal Sync. Range (KHz) | 15 ~ 100 | |
| Maximum Supported Resolution | 4096 x 2160 | |
| Light Source | Quantum Laser™ | |
| Light Source Life Maximum Hours | 30000 | |
| Brightness (Lumens) | 4000 | |
| Dynamic Contrast Ratio | 2000000:1 | |
| Native Contrast Ratio | 300000:1 | |
| Aspect Ratio | 16:9 | |
| Pixels | 1920 x 1080 | |
| Native Resolution | 1080p | |
| Panel Size | 0.47" | |
| Projection Technology | Texas Instruments DLP® | |
| Optical | ||
| Optical Zoom | Manual | |
| Digital Zoom Demagnification / Magnification | 0.8x ~ 2.0x | |
| Focus Adjustment | Manual | |
| Projection Distance (Meters/Feet) | 1.0 ~ 8.1 / 3.28 ~ 26.57 | |
| Projection Factor | 1.21 ~ 1.59:1 | |
| Horizontal Keystone Correction | ±30° | |
| Keystone Adjustment | Automatic/Manual | |
| Vertical Keystone Correction | ±30° | |
| Horizontal Lens shift (%) | - | |
| Focal Length (mm) | 12.81 ~ 16.74 | |
| F-Stop | 1.94 ~ 2.23 | |
| Vertical Lens shift (%) | - | |
| Lens Zoom Adjustment | Manual | |
| Optional Lenses | - | |
| Image Offset (%) | 115 ±5 | |
| Lens | 1.3x | |

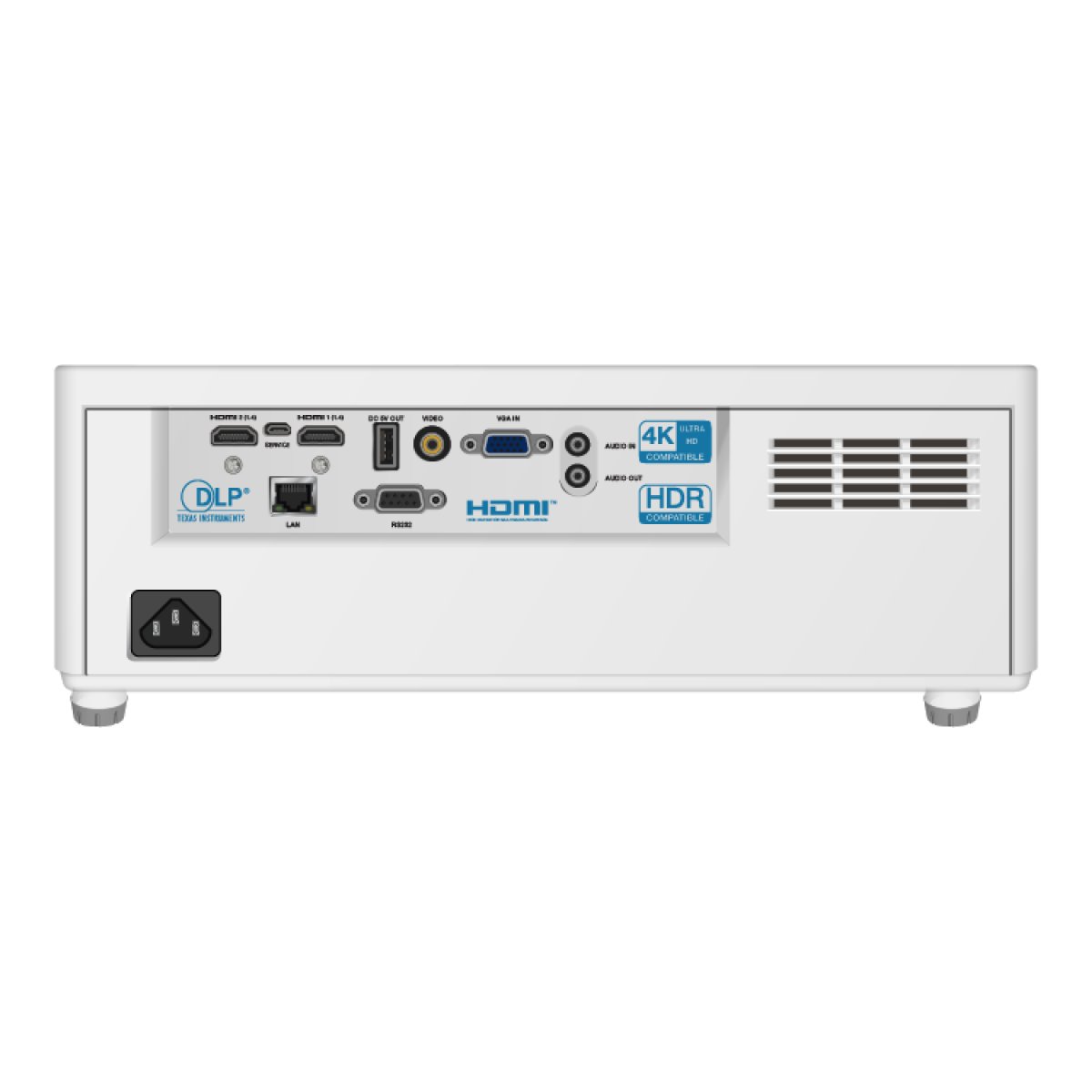

| Connectivity | ||
| 12v Screen Trigger | - | |
| Photo Viewer | - | |
| Music Player | - | |
| Video Player | - | |
| Micro USB for Service | ✅ | |
| Document Reader | - | |
| USB-A for Service | - | |
| USB-B 2.0 for Service | - | |
| Powered USB-A for Wireless Dongle | ✅ | |
| All Major 3D Formats | ✅ | |
| RJ45 HDBaseT | - | |
| Other | ||
| RS232 | ✅ | |
| 3D Sync | - | |
| Mini D-sub 15-pin (VGA) | - | |
| 3.5 mm Stereo Mini Jack | ✅ | |
| Outputs | ||
| 3.5 mm Stereo Mini Jack with Microphone | - | |
| 3.5 mm Stereo Mini Jack | ✅ | |
| RJ45 - LAN 10/100/1000 | ✅ | |
| S-Video | - | |
| HDMI™ 1.4 | ✅ | |
| HDMI™ 2.0 | ✅ | |
| USB-B 2.0 | - | |
| Mini D-sub 15-pin (VGA) | ✅ | |
| Composite Video | ✅ | |
| Inputs | ||
| Power | ||
| Power Consumption Standby (W) | <0.5 | |
| Power Consumption Network Standby (W) | <2 | |
| Power Supply | 100 ~ 240 V AC; 50 - 60 Hz | |
| Power Consumption Min. (W) | 157 | |
| Power Consumption Max (W) | 211 | |
| General | ||
| Max Operating Altitude (meters / feet) | 10000 / 32808 | |
| Operating Humidity (%) | 0 ~ 85 | |
| Operating Temperature (Celsius/Fahrenheit) | 0 ~ 40 / 32 ~ 104 | |
| Audio | 10 | |
| Fan Noise (dB) | 30 | |
| Product Weight (Kilograms/Pounds) | 4.6 / 10.1 | |
| Dimensions (W x H x D) (mm / in) | 337 x 265 x 119.3 / 13.27 x 10.4 x 4.7 | |
| Storage Temperature (Celsius/Fahrenheit) | -10 ~ 60 | |
| Storage Humidity (%) | 0 ~ 85 | |
| Security | Kensington Lock Port™, PIN & Timer Functions | |
| In the Box | Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide. | |
| Safety and Regulatory | CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM, PSB, BIS | |
| Environmental | WEEE, RoHS | |
