Superior Series
INL2156 - WXGA
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | WXGA / 16:10 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 4500 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms / Pounds) | 4.6 / 10.1 |
SELECT A PRODUCT BELOW
Description
The next generation of Laser Projection is here! With this multi-purpose, multi-use range of laser projectors, you get far more than an image on the wall.
Content bursts to life, and viewing becomes an absolute pleasure and a next-level experience in any environment. Viewing presentations in the workplace offers much more crisp detail and readability.
Engage more in the classroom and have peace of mind that you and your students or classmates are using the latest cutting-edge, environmentally friendly, energy-efficient display technology on the market.
With a IP6X dust resistance rating the Superior Series deliver outstanding dust resistance for 24/7 maintenance-free operation in challenging environments
✨Benefits
Environmentally-Friendly Laser Technology
The Superior Series, part of our Quantum Laser line of projectors, are deployed with solid-state laser light source technology. The complete Quantum Laser range is lamp, filter, mercury, and maintenance-free. The ultra-low energy usage for its class and long-standing durability and performance offers outstanding value and low cost of ownership.
4K Support
Simply stunning image quality with up to 1920 x 1200 native resolution and HDMI 2.0 (HDCP 2.2) 4K support. HDR compatible for like life texture details and improved image depth perception.
SuperSmartProject
Our SuperSmartProject suite of power-saving, power optimisation, and utiliza-tion features and functions combine ease of use and energy saving for your everyday use. Instant power on, signal power on, instant power off, auto power-off, 10 step illumination reduction, and Dynamic Black optimization all enhance your viewing experience while optimizing energy usage.
Flexible Installation
Flexibility for almost every surface with front, rear, and ceiling placement as well as floor to ceiling and ceiling to floor projection, full 360-degree placement across the horizontal axis and not forgetting both landscape and portrait modes ideal for retail display purposes, fixed installations, bars, clubs, and restaurants.
| Image | ||
|---|---|---|
| Uniformity (%) | 85 | |
| Vertical Sync. Range (Hz) | 23 ~ 120 | |
| Horizontal Sync. Range (KHz) | 15 ~ 100 | |
| Maximum Supported Resolution | 4096 x 2160 | |
| Light Source Life Maximum Hours | 30000 | |
| Light Source | Quantum Laser | |
| Brightness (Lumens) | 4500 | |
| Dynamic Contrast Ratio | 2000000:1 | |
| Native Contrast Ratio | 300000:1 | |
| Aspect Ratio | 16:10 | |
| Pixels | 1280 x 800 | |
| Native Resolution | WXGA | |
| Panel Size | 0.65" | |
| Projection Technology | Texas Instruments DLP® | |
| Optical | ||
| Focus Adjustment | Manual | |
| Digital Zoom Demagnification / Magnification | 0.8x ~ 2.0x | |
| Optical Zoom | Manual | |
| Projection Distance (Meters/Feet) | 1.0 ~ 7.7 / 3.28 ~ 25.26 | |
| Projection Factor | 1.19 ~ 1.54:1 | |
| Vertical Keystone Correction | ±30° | |
| Horizontal Keystone Correction | ±30° | |
| Keystone Adjustment | Automatic/Manual | |
| Vertical Lens shift (%) | - | |
| Horizontal Lens shift (%) | - | |
| F-Stop | 2.5 ~ 2.78 | |
| Focal Length (mm) | 16.9 ~ 21.6 | |
| Image Offset (%) | 112.4 ±5 | |
| Optional Lenses | - | |
| Lens | 1.3x | |
| Lens Zoom Adjustment | Manual | |

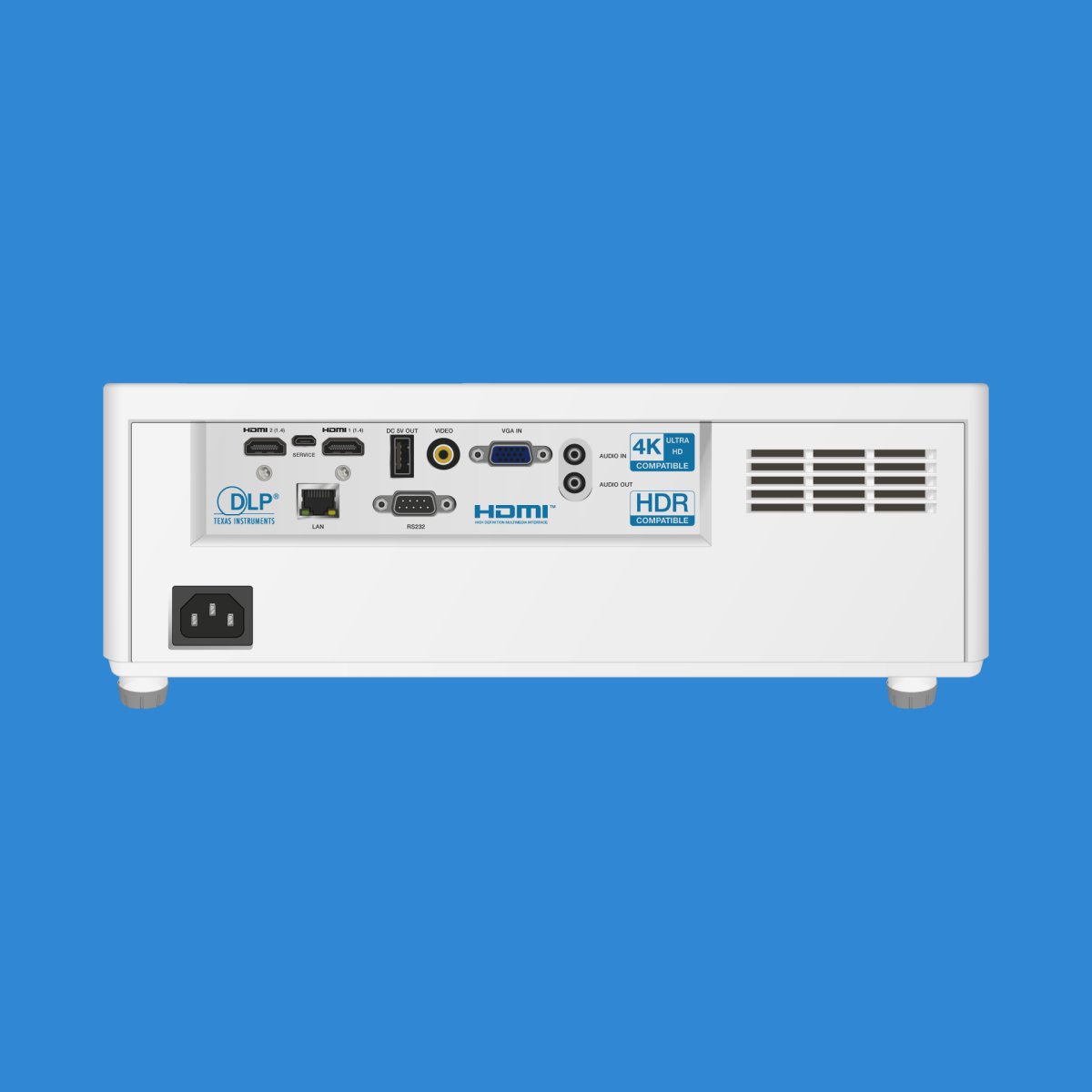

| Connectivity | ||
| 12v Screen Trigger | - | |
| Video Player | - | |
| Photo Viewer | - | |
| Music Player | - | |
| All Major 3D Formats | ✅ | |
| USB-B 2.0 for Service | - | |
| USB-A for Service | - | |
| Micro USB for Service | ✅ | |
| Document Reader | - | |
| Other | ||
| RS232 | ✅ | |
| RJ45 HDBaseT | - | |
| Outputs | ||
| Mini D-sub 15-pin (VGA) | - | |
| 3.5 mm Stereo Mini Jack | ✅ | |
| Powered USB-A for Wireless Dongle | ✅ | |
| 3D Sync | - | |
| 3.5 mm Stereo Mini Jack | ✅ | |
| 3.5 mm Stereo Mini Jack with Microphone | - | |
| RJ45 - LAN 10/100/1000 | ✅ | |
| USB-B 2.0 | - | |
| HDMI™ 2.0 | ✅ | |
| HDMI™ 1.4 | ✅ | |
| Composite Video | ✅ | |
| S-Video | - | |
| Mini D-sub 15-pin (VGA) | ✅ | |
| Inputs | ||
| Power | ||
| Power Consumption Network Standby (W) | <2 | |
| Power Supply | 100 ~ 240 V AC; 50 - 60 Hz | |
| Power Consumption Max (W) | 211 | |
| Power Consumption Min. (W) | 157 | |
| Power Consumption Standby (W) | <0.5 | |
| General | ||
| Dimensions (W x H x D) (mm / in) | 337 x 265 x 119.3 / 13.27 x 10.4 x 4.7 | |
| Product Weight (Kilograms/Pounds) | 4.6 / 10.1 | |
| Fan Noise (dB) | 30 | |
| Audio | 10 | |
| Operating Temperature (Celsius/Fahrenheit) | 0 ~ 40 / 32 ~ 104 | |
| Operating Humidity (%) | 0 ~ 85 | |
| Max Operating Altitude (meters / feet) | 10000 / 32808 | |
| Storage Temperature (Celsius/Fahrenheit) | -10 ~ 60 | |
| Storage Humidity (%) | 0 ~ 85 | |
| Security | Kensington Lock Port™, PIN & Timer Functions | |
| In the Box | Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide. | |
| Safety and Regulatory | CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM, PSB, BIS | |
| Environmental | WEEE, RoHS | |
