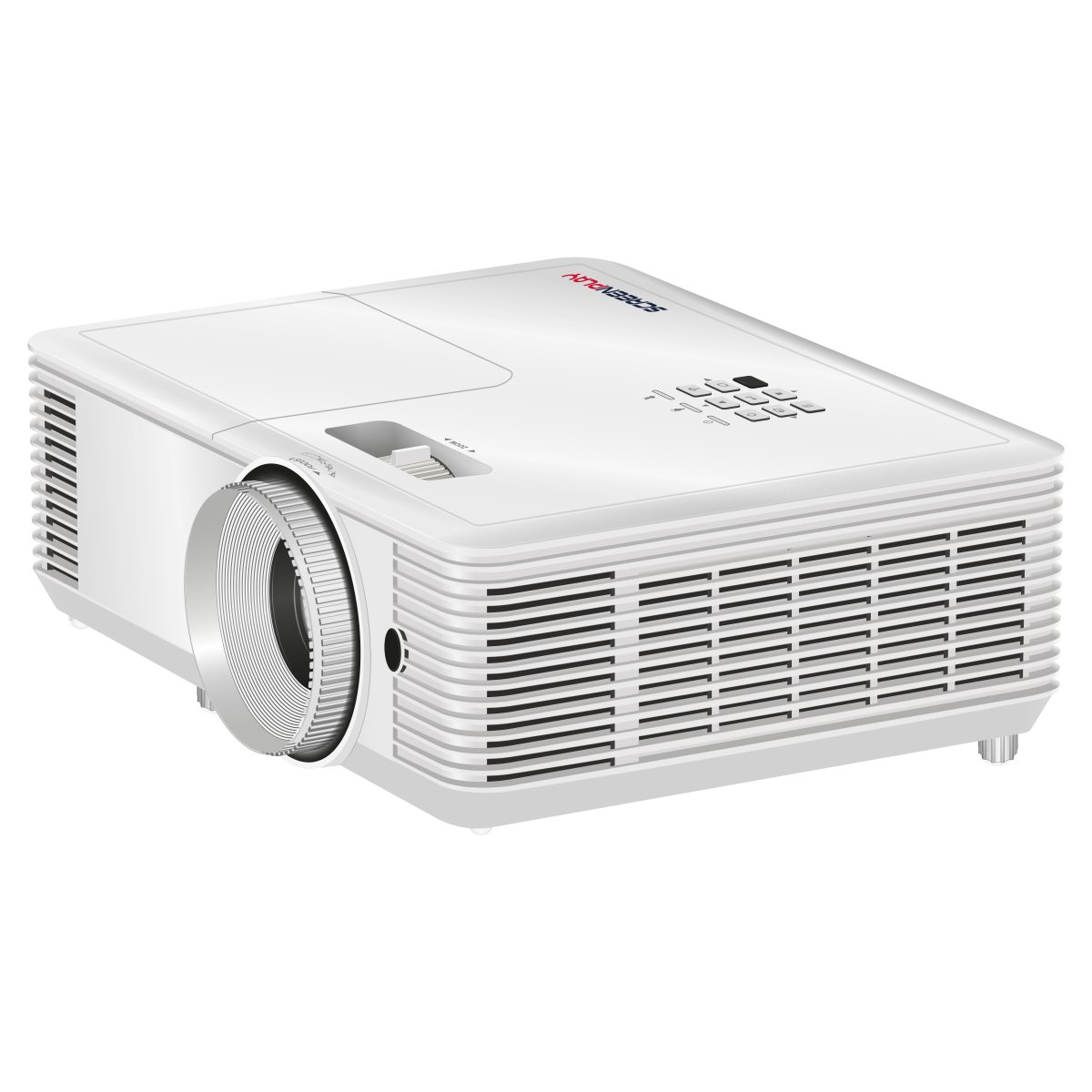

ScreenPlay Genesis II
SP228 - 1080p
| Projection Technology / Light Source | Texas Instruments DLP® / UHP Lamp |
| Native Resolution / Aspect Ratio | 1080ap / 16:9 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 4000 |
| Light Source Life Maximum (Hours) | 15000 |
| Product Weight (Kilograms / Pounds) | 2.9 / 6.4 |
SELECT A PRODUCT BELOW
Description
The ScreenPlay Genesis II DLP projectors offer outstanding ultra-long lamp life, high brightness, and superb connectivity, which includes 2x HDMI ports. Designed for classroom, office, and home use, they provide:
- Perfect images.
- Vibrant colors.
- Outstanding readability and contrast.
- Compact and lightweight form.
- Versatile portable display solution.
Short-throw models for education for use with interactive whiteboards add further versatility to Genesis II.
✨Benefits
Full 3D
Display 3D content from almost any 3D source, including 3D Blu-ray players and the latest game consoles.
USB-A Power for Devices
Power your external devices like Google Chromecast with Amazon TV with the convenient USB-A input on the projector.
Industry-leading Lamp Life
An unprecedented 15,000 hours of lamp life when used in Dynamic Mode. With no filters to replace.
High Brightness
Get better, brighter images on any surface, in any light, with 4000 lumens on the standard throw models and 3800 lumens on short throw models.
Advanced Digital Image Correction
With the new digital edge masking and image shift features – we make getting those final image adjustments perfect.
24/7 Operation
They are designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use are required.
| Image | ||
|---|---|---|
| Uniformity (%) | 80 | |
| Vertical Sync. Range (Hz) | 54 ~ 85 | |
| Horizontal Sync. Range (KHz) | 15 ~ 97.55 | |
| Maximum Supported Resolution | 1920 x 1200 | |
| Light Source | UHP Lamp | |
| Light Source Life Maximum Hours | 15000 | |
| Brightness (Lumens) | 4000 | |
| Contrast Ratio | 30000:1 | |
| Aspect Ratio | 16:9 | |
| Pixels | 1920 x 1080 | |
| Native Resolution | 1080p | |
| Panel Size | 0.47" DMD | |
| Projection Technology | Texas Instruments DLP® | |
| Optical | ||

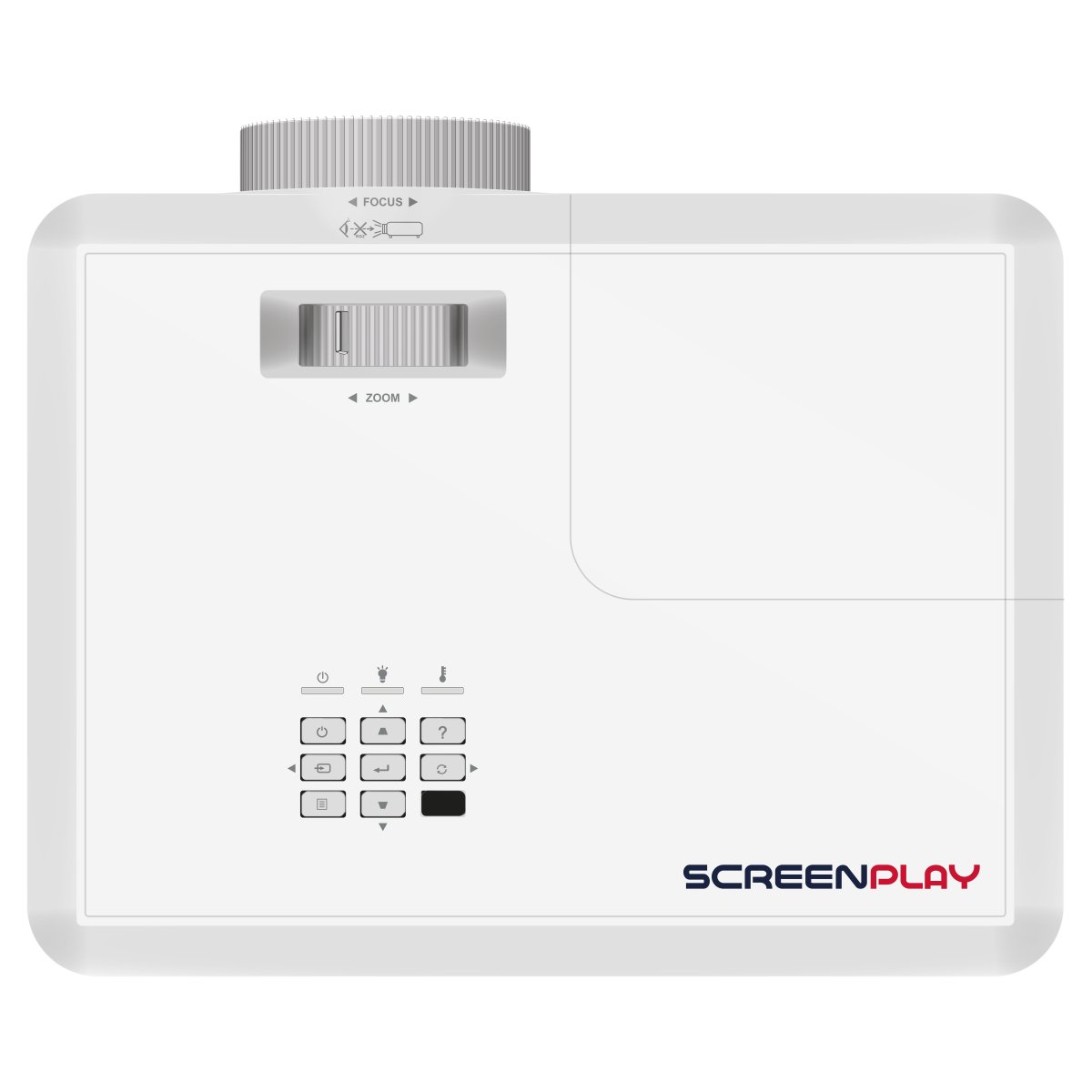

| Focus Adjustment | Manual | |
| Optical Zoom | 1.1:1 | |
| Digital Zoom Demagnification / Magnification | 0.8x ~ 2.0x | |
| Projection Distance (Meters/Feet) | 1.0 ~ 9.8m / 3.28 ~32.14 | |
| Projection Factor | 1.47 ~ 1.62:1 | |
| Horizontal Keystone Correction | - | |
| Keystone Adjustment | Manual / Automatic | |
| Vertical Keystone Correction | ± 40° | |
| Horizontal Lens shift (%) | - | |
| F-Stop | 2.1 | |
| Vertical Lens shift (%) | - | |
| Focal Length (mm) | 21.85 ~ 24.02 | |
| Image Offset (%) | 116 | |
| Lens Zoom Adjustment | - | |
| Optional Lenses | - | |
| Lens | 1.1x | |
| Connectivity | ||
| 3D | Full 3D All Major Formats | |
| Embeded System | - | |
| Networking & Control | RS232 | |

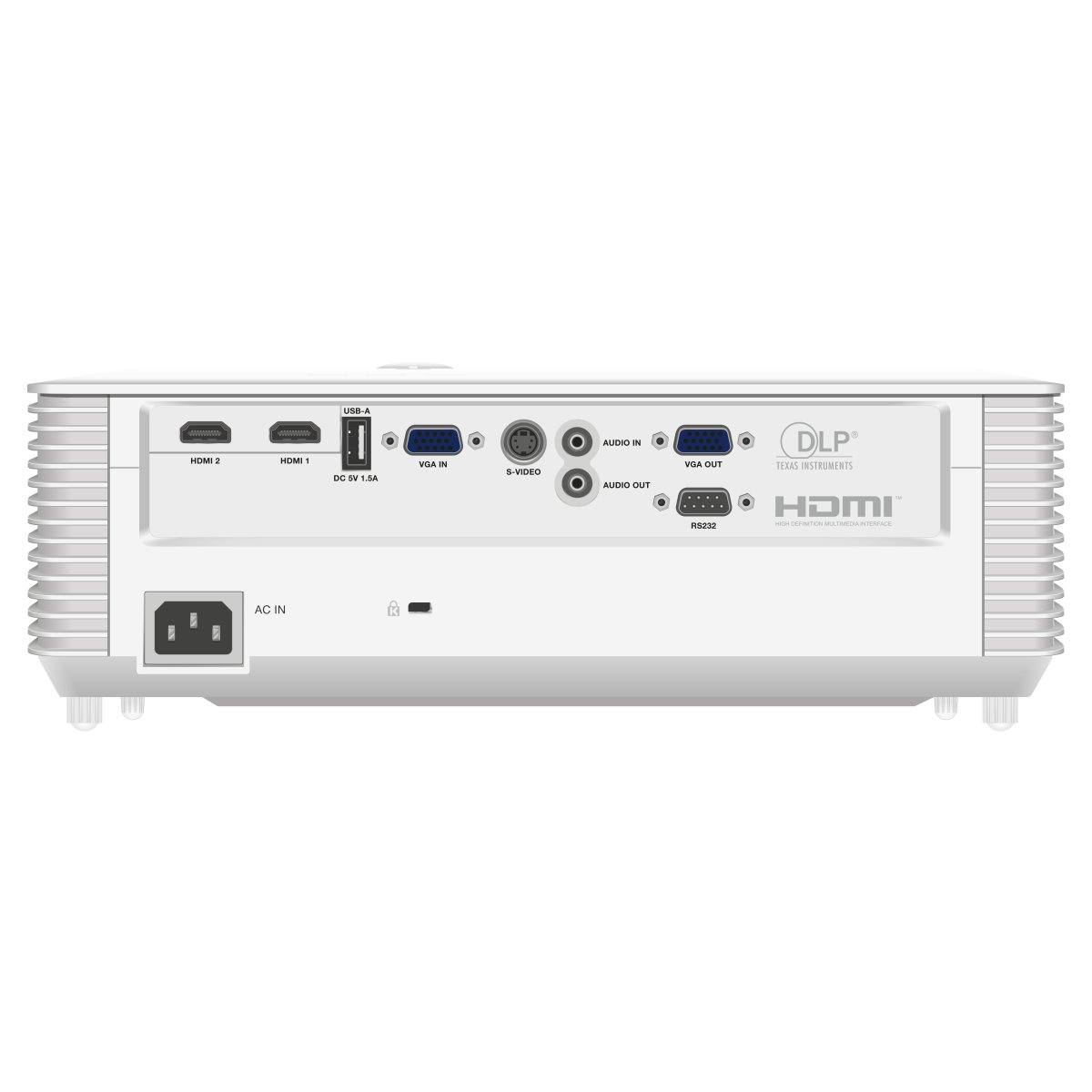

| Outputs | 3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle, Mini D-sub 15-pin (VGA) | |
| Inputs | Mini D-sub 15-pin (VGA), S-Video, 2 x HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service | |
| Power | ||
| Power Consumption Standby (W) | <0.5 | |
| Power Consumption Network Standby (W) | - | |
| Power Consumption Min. (W) | 210 | |
| Power Consumption Max (W) | 267 | |
| Power Supply | 100 ~ 240 V AC; 50 ~ 60 Hz | |
| General | ||
| Security | Kensington Security Slot™, PIN Code Lock & Timer | |
| Storage Temperature (Celsius/Fahrenheit) | -10 ~ 60 / 14 ~ 140 | |
| Storage Humidity (%) | 10 ~ 85 | |
| Operating Humidity (%) | 10 ~ 85 | |
| Max Operating Altitude (meters / feet) | 3048 / 10000 | |
| Operating Temperature (Celsius/Fahrenheit) | 5 ~ 40 / 41 ~ 104 | |
| Packaged Weight (Kilograms/Pounds) | 4.1 / 9.0 | |
| Fan Noise (dB) | 27 | |
| Audio (W) | 1 x 10 | |
| Packaged Dimensions (L x W x H) (mm / in) | 395 x 337 x 166 / 15.6 x 13.3 x 6.5 | |
| Product Weight (Kilograms/Pounds) | 2.9 / 6.4 | |

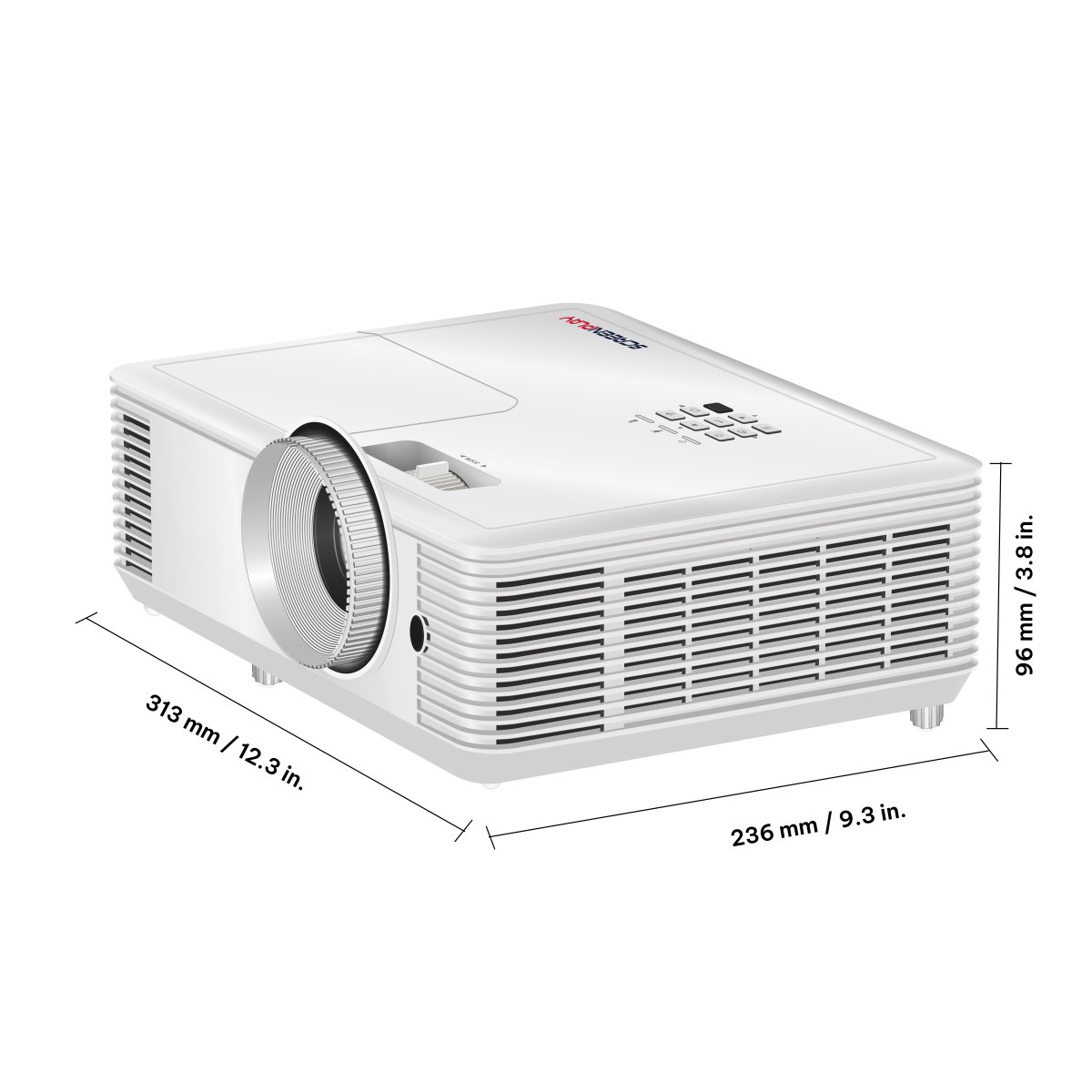

| Product Dimensions (W x H x D) (mm / in) | 313 x 236 x 96.4 /12.4 x 9.3 x 3.8 | |
| Safety and Regulatory | CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS | |
| Environmental | WEEE, EU RoHS, China RoHS, CEL, CECP | |
