Infinity Series

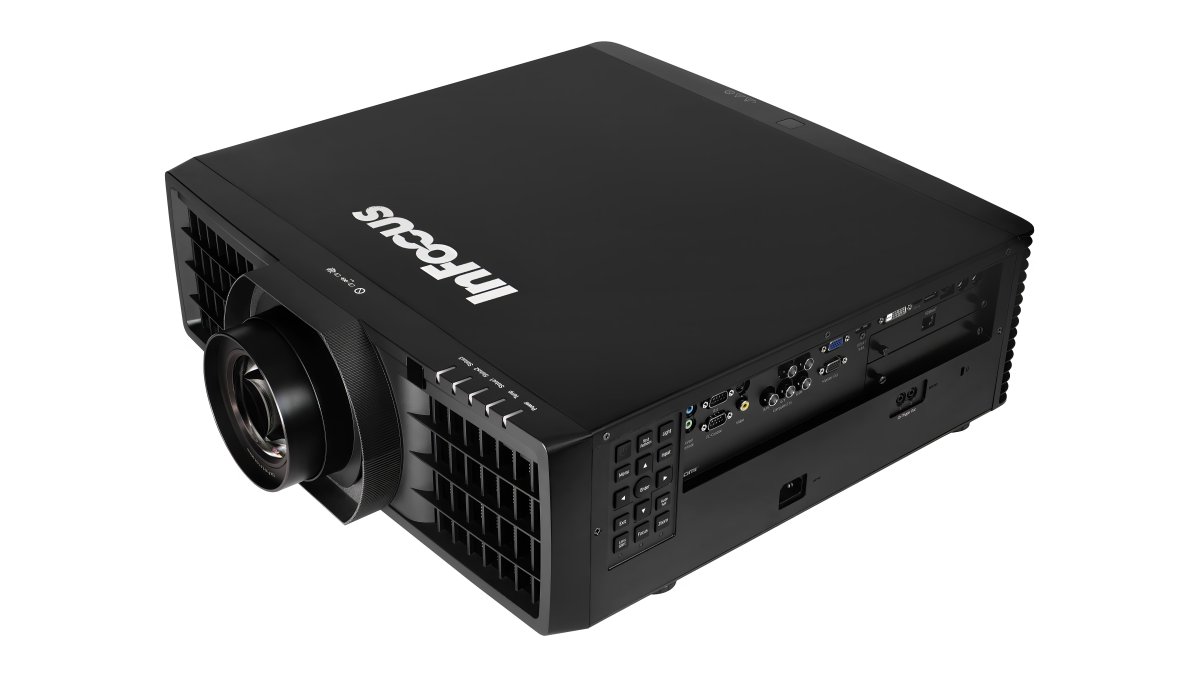

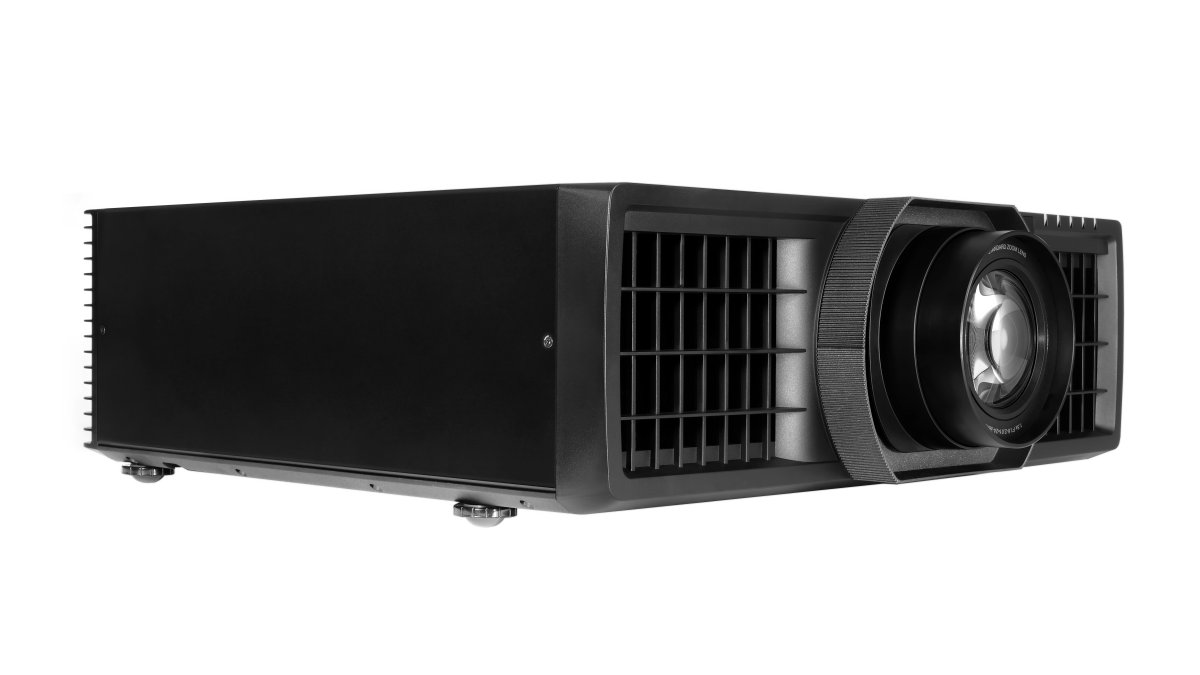

INL6159 - WUXGA
| Projection Technology | Texas Instruments DLP® |
| Native Resolution / Aspect Ratio | WUXGA / 16:10 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 15000 |
| Light Source Life Maximum (Hours) | 40000 |
| Product Weight (Kilograms / Pounds) | 26.5 / 58.4 |
| Product Availability | Not available in US, Canada, Europe, Mexico and India |
SELECT A PRODUCT BELOW
Description
Single Chip DLP Laser Projectors for Professional Installations
Take your visual experience to new heights with InFocus Quantum Laser Infinity Series projectors. Engineered for superior performance and immersive viewing, these laser projectors deliver exceptional image clarity, vibrant colors, and long-lasting performance, making them ideal for business, education, houses of worship, and other large venue applications.
✨Benefits
Experience flawless image beyond Full HD
Featuring native WUXGA resolution of 1920 x 1200, these projectors deliver stunningly crisp and flawless images beyond 1080p Full HD, ensuring every detail is crystal clear for an unparalleled visual experience.
Incredibly long lifespan of 40,000 hours
Boasting an impressive 40,000 hours lifespan, the Quantum Laser Infinity Series effectively lowers total cost of ownership with reliable and high performance in the long run, offsetting operating costs such as lamp replacement, maintenance, and downtime.
Spectacular brightness of 12,000 to 15,000 lumens
With brightness levels of up to 15,000 lumens, you're guaranteed crystal-clear visuals every time. It adds versatility for use in even large venues with ambient light. These projectors can also overcome distance to ensure images are always vibrant and not washed
Maintenance-free Design Saves Time and Money
The filter-less, IPX6-rated sealed optical engine design is maintenance-free and protects the critical optical engine from dust and dirt so that images are always bright and vibrant, ensuring long durability and reliability even with 24/7 projection.
| Image | ||
|---|---|---|
| Uniformity (%) | 85 | |
| Vertical Sync. Range (Hz) | 23 ~ 120 | |
| Horizontal Sync. Range (KHz) | 15 ~ 102 | |
| Maximum Supported Resolution | 1920 x 1200 | |
| Light Source Life Maximum Hours | 40000 | |
| Light Source | Quantum Laser | |
| Brightness (Lumens) | 15000 | |
| Dynamic Contrast Ratio | 3500000:1 | |
| Native Contrast Ratio | 100000:1 | |
| Aspect Ratio | 16:10 | |
| Pixels | 1920 x 1200 | |
| Native Resolution | WUXGA | |
| Panel Size | 0.67" DMD | |
| Projection Technology | Texas Instruments DLP® | |
| Optical | ||
| Focus Adjustment | Powered | |
| Digital Zoom Demagnification / Magnification | -0.5 ~ 2.0 | |
| Optical Zoom | Powered | |
| Projection Distance (Meters/Feet) | ||
| Horizontal Keystone Correction | ± 30° | |
| Projection Factor | 1.51 | |
| Vertical Keystone Correction | ± 30° | |
| Keystone Adjustment | Horizontal & Vertical with 4 Corner Correction | |
| Vertical Lens shift (%) | +0 ~ 60% | |
| Horizontal Lens shift (%) | +/-0 ~ 60% | |
| Focal Length (mm) | 1.41 ~ 2.41 | |
| F-Stop | 1.6 ~ 2.0 | |
| Optional Lenses | LENS-088, 089, 090, 091, 092, 093 | |
| Optional Lenses | Yes x6 | |
| Lens Zoom Adjustment | Powered | |

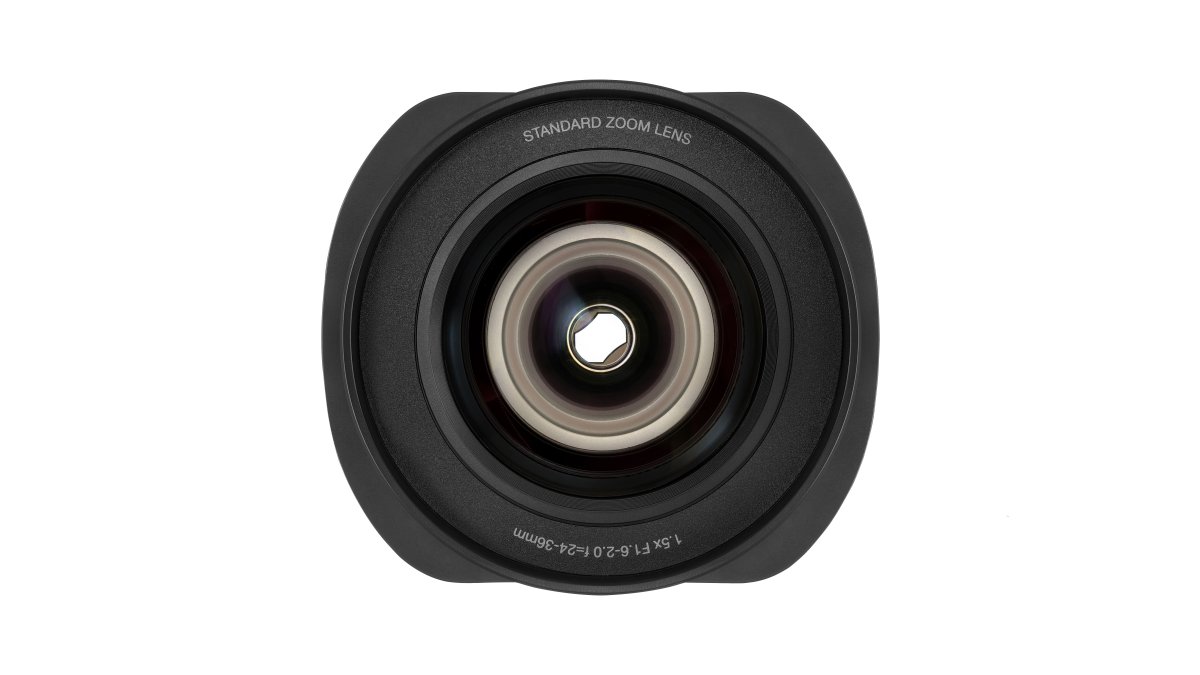

| Lens | Unit is supplied lensless, lens options available | |

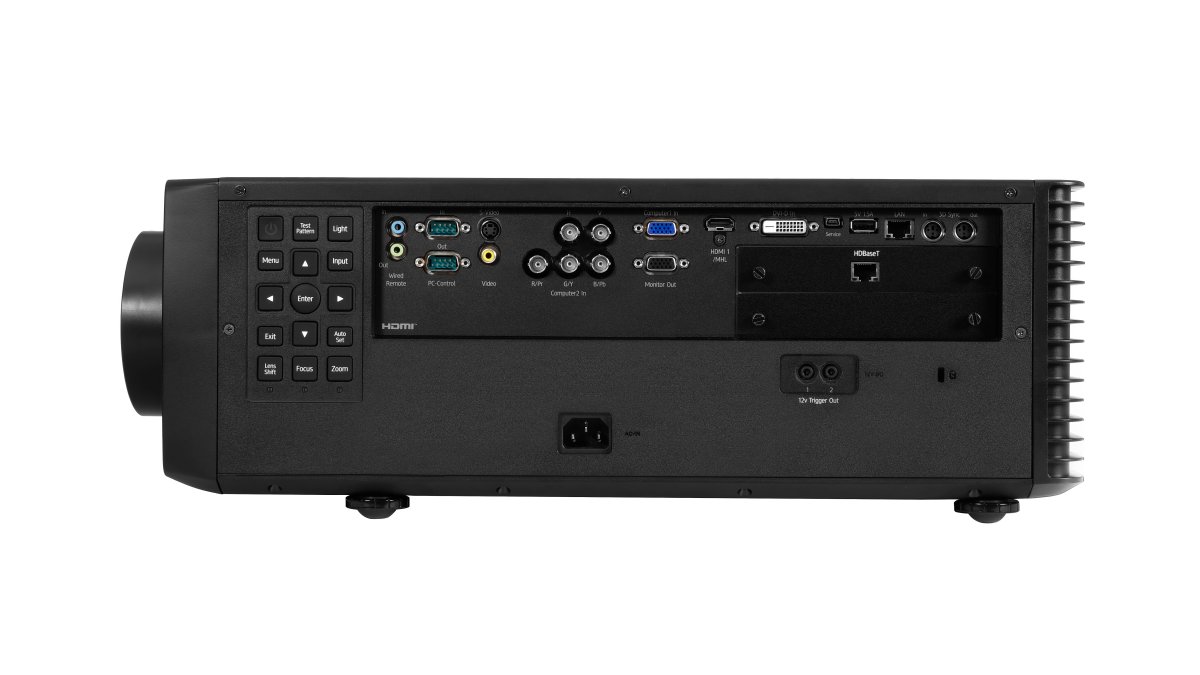

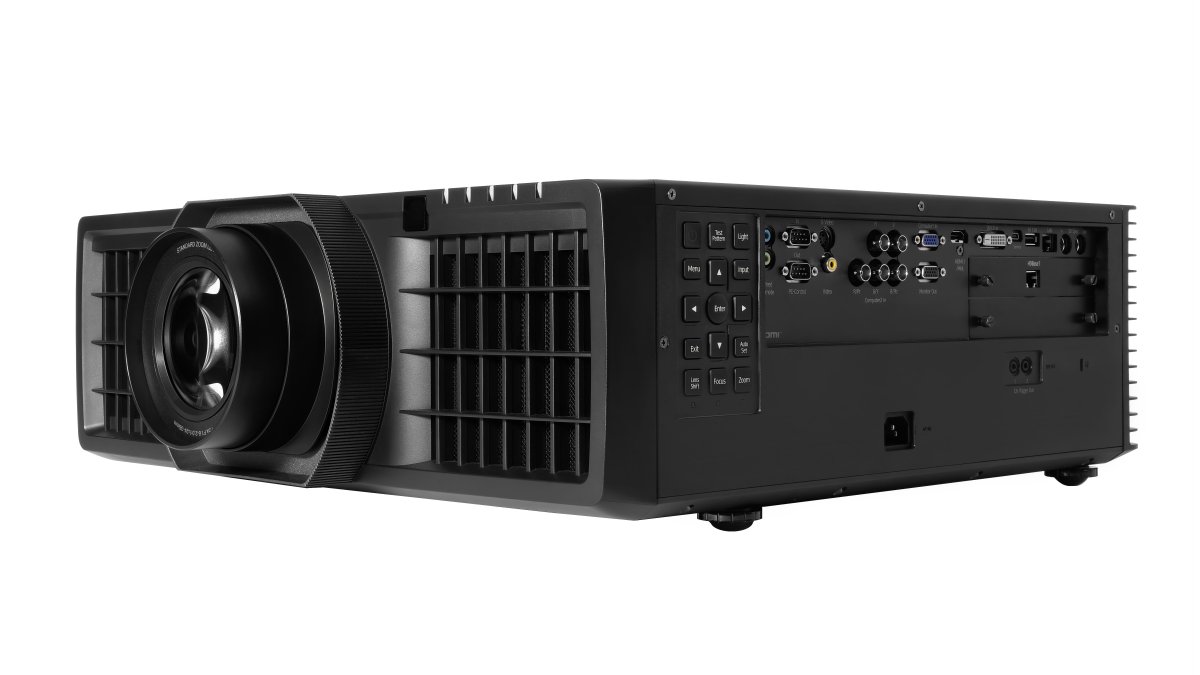

| Connectivity | ||
| LAN (RJ45) | 1 | |
| USB Mini Type B (Service) | 1 | |
| USB Type A | 1 (Power 5V 1.5A) | |
| DVI-D in | 1 | |
| HDMI in | 1 (1.4a/HDCP 1.4) | |
| Monitor out (D-sub 15pin) | 1 | |
| PC in (D-sub 15pin) | 1 | |
| Composite Video | 1 | |
| Component Video in (5BNC) | 1 | |
| RS232 out (DB-9pin) | 1 | |
| S-Video | 1 | |
| RS232 in (DB-9pin) | 1 | |
| Wired Remote in (3.5mm Mini Jack) | 1 | |
| DC 12V Trigger (3.5mm Jack) | 1 | |
| 3D Sync in | 1 | |
| 3D Sync out | 1 | |
| HDBaseT (RJ45) | 1 (Control/Video/Audio) | |
| Video | NTSC, PAL, SECAM, 480i ~ 1080p @60Hz | |
| Computer | VGA (640 x 480) ~ WUXGA (1920 x 1200) | |
| 3D | Supports All Major Formats | |
| Screen Sizes (inches, diagonal) | 60 ~ 500 | |
| Power | ||
| Power Supply | 100 ~ 240 V AC; 50 ~ 60 Hz | |
| Power Consumption Typical (W) | 1290 | |
| Power Consumption Network Standby (W | 2 | |
| Power Consumption Standby (W) | <0.5 | |
| General | ||
| Product Dimensions (W x H x D) (mm) | 548 x 522 x 175 | |
| Product Weight (Kilograms) | 26.5 | |
| Shipping Dimensions (W x H x D) (mm) | 700 x 680 x 360 | |
| Shipping Weight (Kilograms) | 28 | |

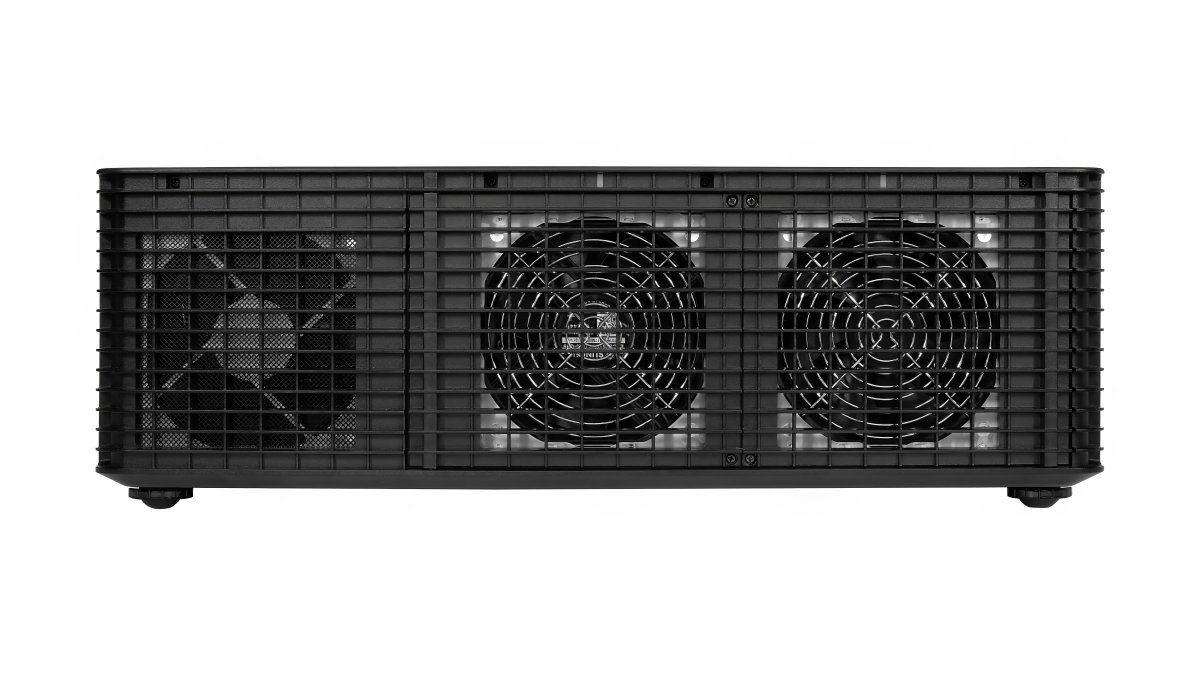

| Fan Noise (dB) | 37 ~ 41 | |
| Audio (W) | - | |
| Operating Temperature (Celsius) | 5 ~ 40 | |
| Operating Humidity (%) | 20 ~ 80 | |
| Max Operating Altitude (meters) | 3000 | |
| Storage Temperature (Celsius) | 5 ~ 40 | |
| Storage Humidity (%) | 20 ~ 80 | |
