Core Series

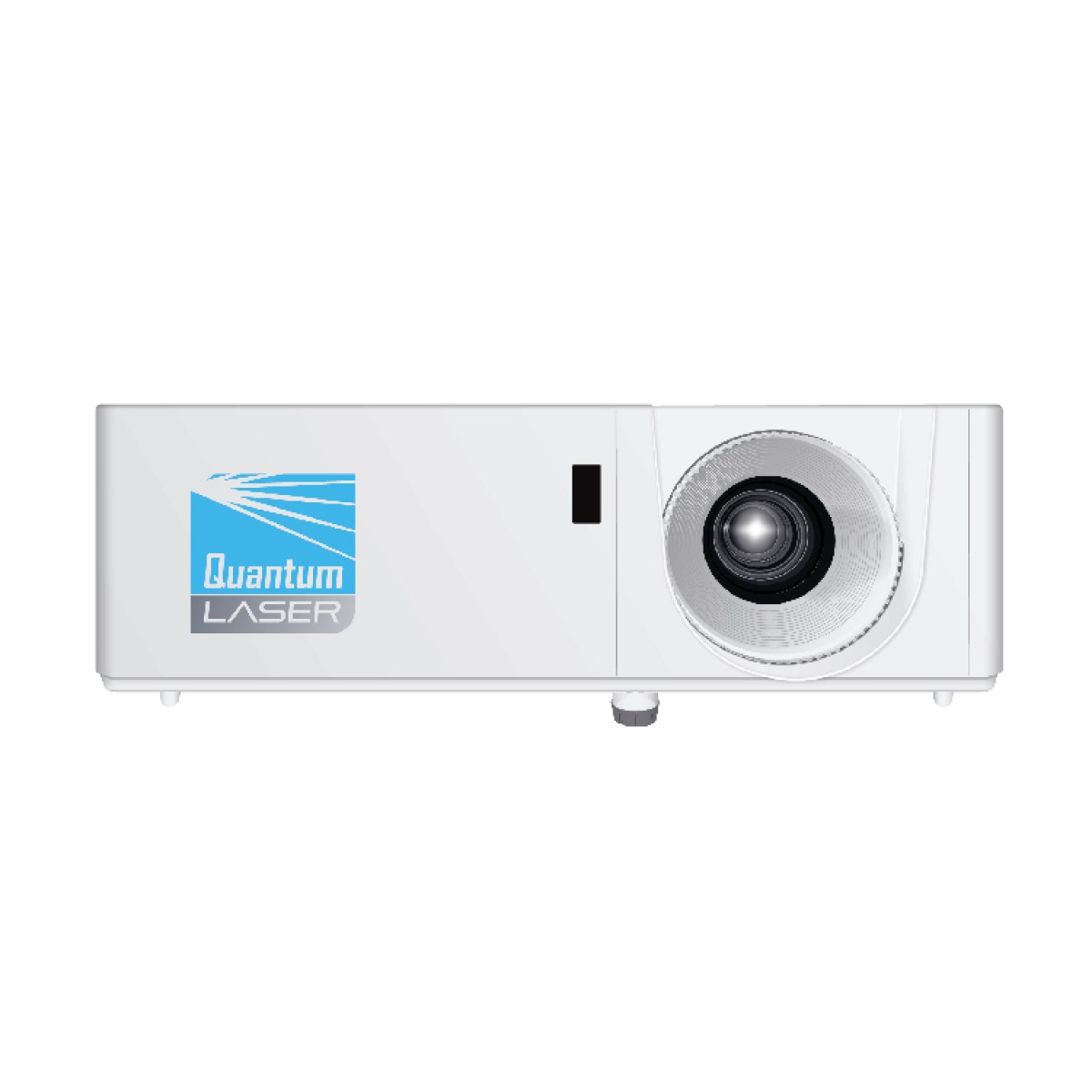

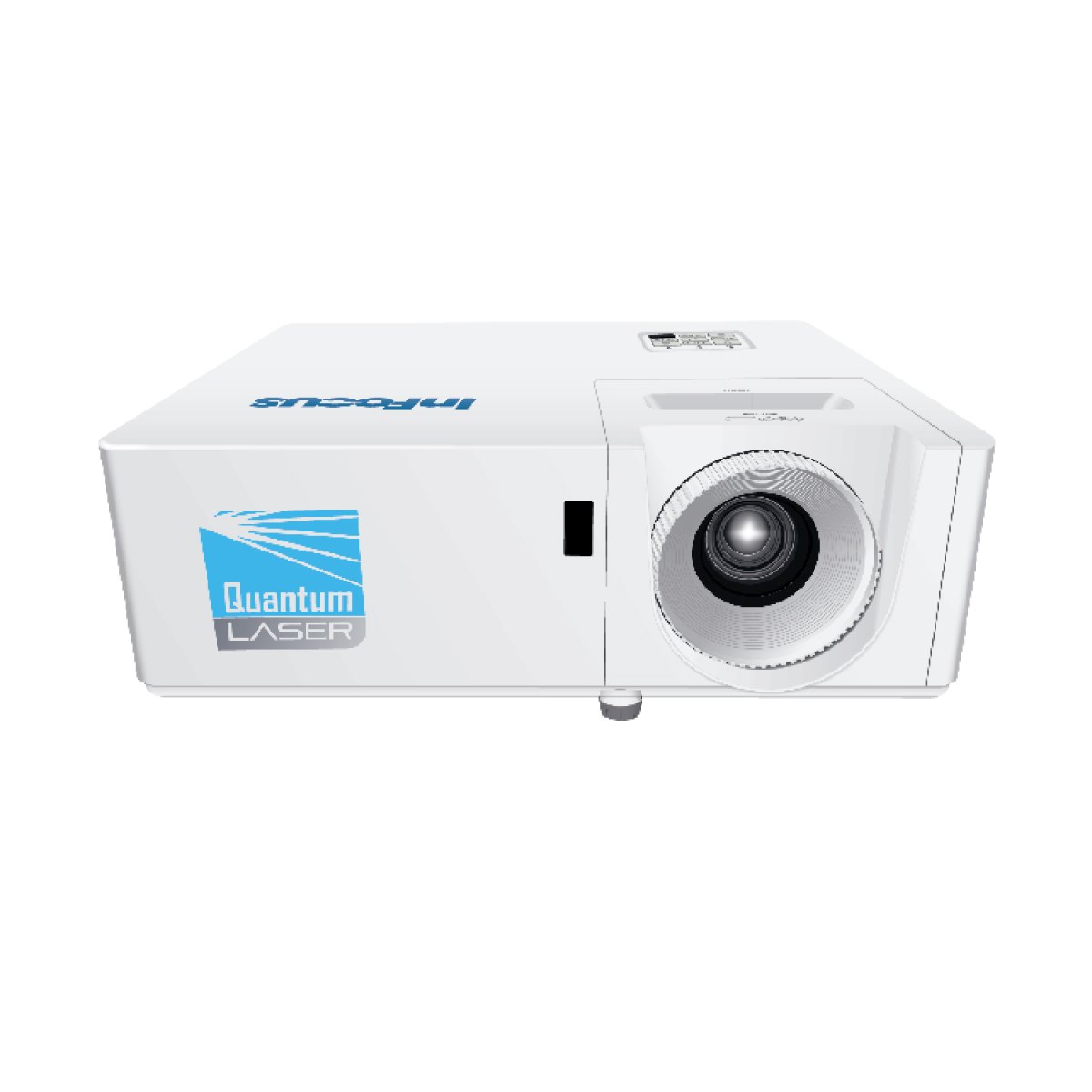

INL154 - XGA
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | XGA / 4:3 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 3500 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms / Pounds) | 3.9 / 8.6 |
SELECT A PRODUCT BELOW
Description
Breaking new ground for laser projection value and total cost of ownership with no lamps to change, no filters to clean the Quantum Laser Core Series are feature-packed delivering up to 30,000 hours of 24/7, maintenance-free use.
Designed for maintenance-free continuous operation, the Core Series can be installed in virtually any orientation. Lightweight with a compact footprint combined with 360-degree and portrait projection enable flexible and effortless installation.
With a IP6X dust resistance rating the Core Series deliver outstanding dust resistance for 24/7 maintenance free operation in challenging environments.
✨Benefits
Lamp Free Environmentally-Friendly Laser Technology
Our Quantum Laser product line is reliable and environmentally friendly with solid-state laser light source technology. The complete product line is lamp, filter, mercury, and maintenance-free. The ultra-low energy usage for its class and long-standing durability and performance offers outstanding value and total cost of ownership.
Unparalleled Flexibility
Flexibility for almost every use model with a 1.3x optical zoom lens, front, rear, and ceiling placement and floor to ceiling projection, ceiling to floor, complete 360-degree installation across the horizontal axis, and not forgetting both landscape and portrait modes—ideal for meeting rooms, home office, classrooms, retail displays, fixed installations, bars, clubs, and restaurants and so much more.
Designed for maintenance-free 24/7 continuous operation
Designed for maintenance-free 24/7 continuous operation with advanced laser diode cooling and a IP6X rated dust resistant design.
SuperSmartProject
Our SuperSmartProject suite of power-saving, power optimisation, and utilisation features and functions combine ease of use and energy saving for your everyday use. Instant power on, signal power on, instant power off, auto power-off, 10 step illumination reduction, and Dynamic Black optimisation all help enhance your viewing experience while optimising energy usage.
Quantum Laser Engine
We incorporate laser phosphor illumination technology with blue laser diodes instead of traditional lamps to illuminate the Texas Instruments DLP digital micromirror device. The InFocus Quantum Laser engine produces vivid colours and exceptional image quality.
4K Ultra HD Support on Native 1080p Models
Simply stunning image quality with up to 1920 x 1080 native resolution, HDMI 2.0 (HDCP 2.2) 4K Ultra HD and High dynamic range (HDR) support. The projected image has life texture details and improved image depth perception that pops off the screen.
| Image | ||
|---|---|---|
| Uniformity (%) | 85 | |
| Vertical Sync. Range (Hz) | 50 ~ 120 | |
| Horizontal Sync. Range (KHz) | 15 ~ 100 | |
| Maximum Supported Resolution | 1920 x 1080 | |
| Light Source Life Maximum Hours | 30000 | |
| Light Source | Quantum Laser | |
| Brightness (Lumens) | 3500 | |
| Contrast Ratio | 2000000:1 | |
| Aspect Ratio | 4:3 | |
| Pixels | 1024 x 768 | |
| Native Resolution | XGA | |
| Panel Size | 0.55" | |
| Projection Technology | Texas Instruments DLP® | |
| Optical | ||
| Digital Zoom Demagnification / Magnification | 0.8x ~ 2.0x | |
| Focus Adjustment | Manual | |
| Optical Zoom | Manual | |
| Projection Factor | 1.49 ~ 1.93:1 | |
| Projection Distance (Meters/Feet) | 1.2 ~ 9.1 / 3.9 ~ 29.9 | |
| Horizontal Keystone Correction | - | |
| Vertical Keystone Correction | ±30° | |
| Keystone Adjustment | Automatic / Manual | |
| Horizontal Lens shift (%) | - | |
| Vertical Lens shift (%) | - | |
| F-Stop | 2.43 ~ 2.78 | |
| Focal Length (mm) | 16.901 ~ 21.607 | |
| Optional Lenses | - | |
| Image Offset (%) | 115 | |
| Lens Zoom Adjustment | Manual | |
| Lens | 1.3x | |

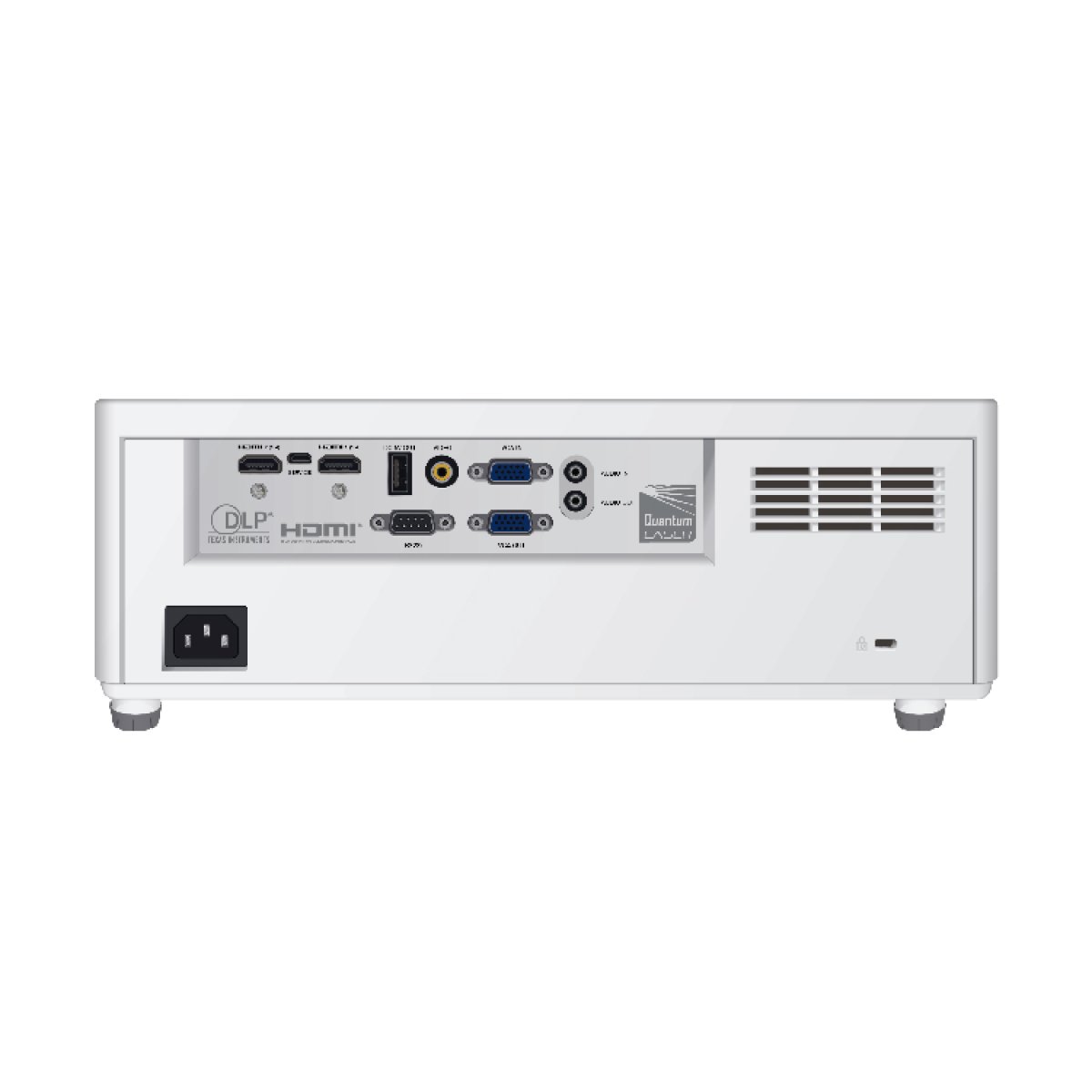

| Connectivity | ||
| Document Reader | - | |
| USB-B 2.0 for Service | - | |
| Micro USB for Service | ✅ | |
| USB-A for Service | - | |
| All Major 3D Formats | ✅ | |
| 3D Sync | - | |
| Other | ||
| RS232 | ✅ | |
| RJ45 HDBaseT | - | |
| 3.5 mm Stereo Mini Jack | ✅ | |
| Powered USB-A for Wireless Dongle | ✅ | |
| 3.5 mm Stereo Mini Jack with Microphone | - | |
| Outputs | ||
| Mini D-sub 15-pin (VGA) | ✅ | |
| 3.5 mm Stereo Mini Jack | ✅ | |
| RJ45 - LAN 10/100/1000 | - | |
| USB-B 2.0 | - | |
| S-Video | - | |
| HDMI™ 1.4 | ✅✅ | |
| HDMI™ 2.0 | - | |
| Composite Video | ✅ | |
| Mini D-sub 15-pin (VGA) | ✅ | |
| Inputs | ||
| Video Player | - | |
| Photo Viewer | - | |
| Music Player | - | |
| 12v Screen Trigger | - | |
| Power | ||
| Power Supply | 100 ~ 240 V AC; 50 - 60 Hz | |
| Power Consumption Max (W) | 161 | |
| Power Consumption Min. (W) | 138 | |
| Power Consumption Network Standby (W) | - | |
| Power Consumption Standby (W) | <0.5 | |
| General | ||
| Dimensions (W x H x D) (mm / in) | 337 x 265 x 119.3 / 13.27 x 10.4 x 4.7 | |
| Product Weight (Kilograms/Pounds) | 3.9 / 8.6 | |
| Fan Noise (dB) | 28 ~ 30 | |
| Audio (w) | 1x 15 | |
| Operating Temperature (Celsius/Fahrenheit) | 0 ~ 40 / 32 ~ 104 | |
| Operating Humidity (%) | 0 ~ 85 | |
| Max Operating Altitude (meters / feet) | 3048 / 10000 | |
| Storage Temperature (Celsius/Fahrenheit) | -10 ~ 60 / 14 ~140 | |
| Storage Humidity (%) | 0 ~ 85 | |
| Security | Kensington Lock Port™, PIN & Timer | |
| In the Box | Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide, Lens Cap. | |
| Safety and Regulatory | CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM | |
| Environmental | WEEE, RoHS | |
