Advanced 3LCD Series
IN1046 - WXGA
| Projection Technology / Light Source | 3LCD / UHP Lamp |
| Native Resolution / Aspect Ratio | WXGA /16:10 |
| Lens Throw Type | Standard |
| Brightness (Lumens) Colour Light Output / White Light Output | 5000 |
| Light Source Life Maximum (Hours) | 20000 |
| Product Weight (Kilograms / Pounds) | 3.1 / 6.8 |
SELECT A PRODUCT BELOW
Description
Advanced. 3LCD. Projection. For the first time in over a decade, InFocus welcomes its newest 3LCD projector line.
Of course, a lot has changed since InFocus released the first 3LCD over 25 years ago, but the dedication to the highest quality products and providing cutting-edge technologies has not.
Placed alongside our other Lamp, LED, and Laser models, this new affordable and bright 3LCD series comes packed with features and benefits for the office and education environment. Weighing in at only 3.1kg to 3.3kg – making it incredibly easy to move around your home, office, or anywhere!
✨Benefits
Display over USB & LAN*
The latest display technology! Display content from your Windows laptop or computer via the USB-C or USB-A port with a USB cable to the projector. Connect your projector and Windows device to the same local area network and display source content over the network to the projector and onto the big screen. When no network is available, we also offer the ability to display via USB to the projector's RJ45 port by cable.
Memory Viewer*
View files, images, and video with audio directly from a USB thumb drive using the projector USB-A port.
Six Point Pincushion & Barrel Adjustment
Projecting on to an uneven or rounded surface? We have you covered with our optical distortion algorithms and built-in image correction software.
Horizontal & Vertical Keystone
Correct the displayed image quickly and effortlessly with both horizontal and vertical keystone correction.
Logo Capture & Display
Display your company logo or school mascot on your projector start-up screen background with our built-in image capture tool.
Command & Control
Whichever protocol or hardware control device you are using we offer compatibility will all major formats and devices.
Designed to Last - Ultra High Performance Lamps
It’s time to amaze your customers with crystal clear images that jump off the screen. Ultra-high-performance (UHP) lamps are the power behind pictures with incredible colours and crisp contrast. But they offer more than just a wow factor. They shine bright, last long, and have excellent light quality with a low cost of ownership. So you can guarantee your lamp systems will have outstanding brightness over the longest lifetime.
Optimal Contrast Ratio*
The implementation of advanced Iris dynamically adjusts the iris settings providing brightness optimization to best suit the content being displayed. Advanced iris gives dark scenes and content darker blacks and opens up on bright scenes to make optimum use of the projector's available light output. The resulting contrast levels are outstanding!
Screen Splicing
Need to see the detail in one part of an image or zoom in to display a different perspective? Our Screen Splicing allows you to cut the image into a 5x5 or less area and then take one section, or multiple sections, one at a time, and display it full screen.
*
*Specific to models IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
| Image | ||
|---|---|---|
| Uniformity (%) | 85 | |
| Vertical Sync. Range (Hz) | 48 ~ 85 | |
| Horizontal Sync. Range (KHz) | 15 ~ 100 | |
| Maximum Supported Resolution | 3840 x 2160 (4K) @ 30Hz | |
| Light Source Life Maximum Hours | 20000 | |
| Light Source | UHP Lamp | |
| Brightness (Lumens) Colour Light Output / White Light Output | 5000 | |
| Contrast Ratio | 50000:1 | |
| Aspect Ratio | 16:10 | |
| Pixels | 1280 x 800 | |
| Native Resolution | WXGA | |
| Panel Size | 3 x SonyTM 0.59" | |
| Projection Technology | 3LCD with Micro-Lens Array | |
| Optical | ||
| Focus Adjustment | Manual | |
| Optical Zoom | Manual | |
| Digital Zoom Demagnification / Magnification | 0.0x ~ 4.0x | |
| Projection Distance (Meters/Feet) | 0.81 ~ 13.86 / 2.65 ~ 45.47 | |
| Horizontal Keystone Correction | ±30° | |
| Projection Factor | 1.26 ~ 2.09:1 | |
| Vertical Keystone Correction | ±30° | |
| Keystone Adjustment | Automatic/Manual | |
| Horizontal Lens shift (%) | - | |
| Vertical Lens shift (%) | - | |
| F-Stop | 1.7 ~ 2.1 | |
| Focal Length f (millimeters) | 17.50 ~ 29.01 | |
| Image Offset (%) | 10 | |
| Optional Lenses | - | |
| Lens Zoom Adjustment | Manual | |
| Lens | 1.66x | |

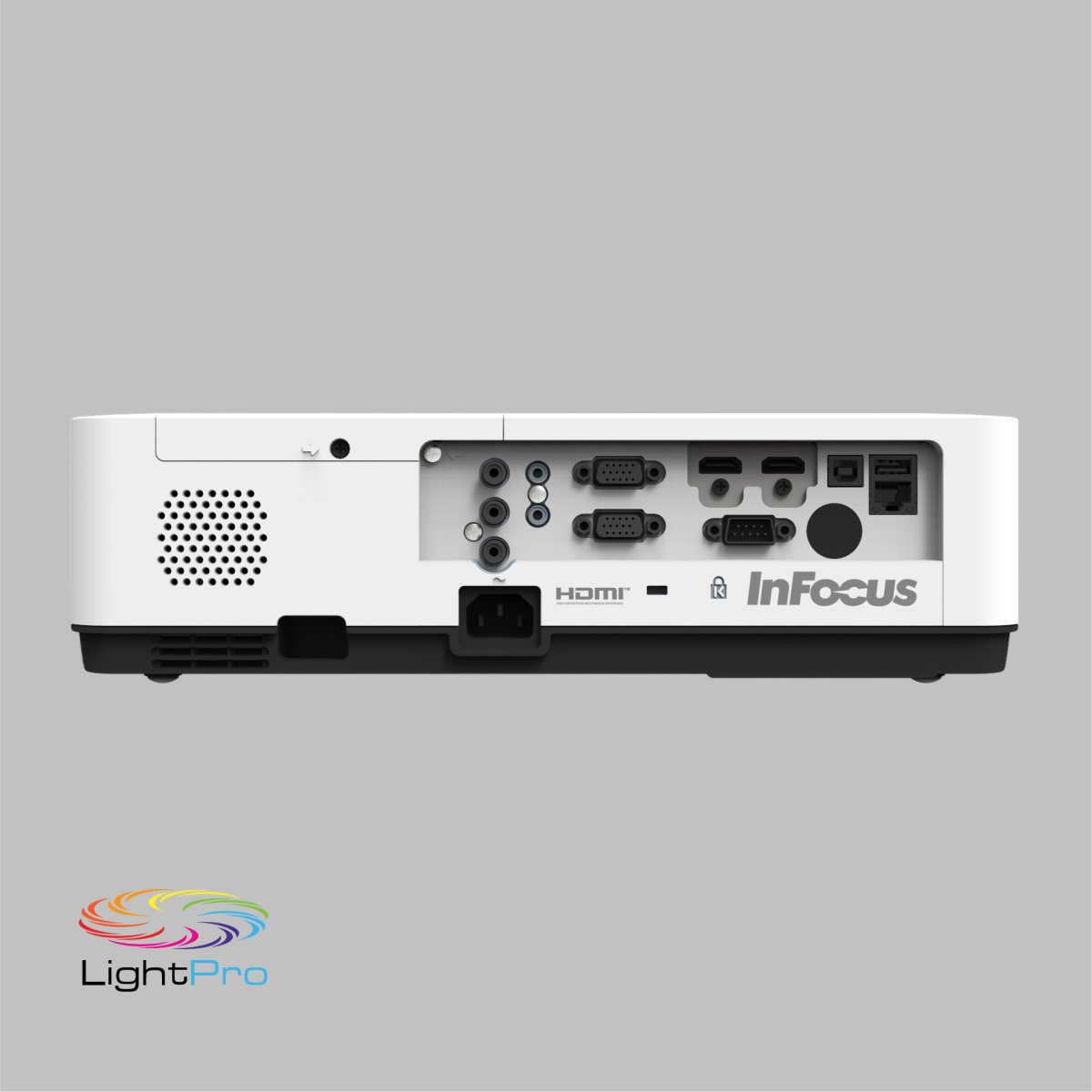

| Connectivity | ||
| Micro USB for Service | - | |
| Video Player | ✅ | |
| Document Reader | ✅ | |
| All Major 3D Formats | - | |
| USB-A for Service | - | |
| USB-B 2.0 for Service | ✅ | |
| RJ45 HDBaseT | - | |
| RS232 | ✅ | |
| Other | ||
| 3D Sync | - | |
| Powered USB-A for Wireless Dongle | ✅ | |
| 3.5 mm Stereo Mini Jack | ✅ | |
| Outputs | ||
| Mini D-sub 15-pin (VGA) | ✅ | |
| 3.5 mm Stereo Mini Jack with Microphone | - | |
| RJ45 - LAN 10/100/1000 | ✅ | |
| 3.5 mm Stereo Mini Jack | ✅ | |
| USB-B 2.0 | ✅ | |
| HDMI™ 2.0 | - | |
| HDMI™ 1.4 | ✅✅ | |
| Composite Video | ✅ | |
| S-Video | - | |
| Mini D-sub 15-pin (VGA) | ✅ | |
| Inputs | ||
| Photo Viewer | ✅ | |
| Music Player | ✅ | |
| 12v Screen Trigger | - | |
| Power | ||
| Power Supply | 100 ~ 240 V AC; 50 ~ 60 Hz | |
| Power Consumption Max (W) | 340 | |
| Power Consumption Min (W) | 150 | |
| Power Consumption Network Standby (W) | <2 | |
| Power Consumption Standby (W) | <0.5 | |
| General | ||
| Dimensions (W x H x D) (mm / in) | 345 x 261 x 99 / 13.58 x 10.27 x 3.89 | |
| Product Weight (Kilograms/Pounds) | 3.3 / 7.27 | |
| Fan Noise (dB) | 26 ~ 30 | |
| Audio (W) | 16 | |
| Operating Temperature (Celsius / Fahrenheit) | 5 ~ 40 / 41 ~ 104 | |
| Operating Humidity (%) | 20 ~ 80 | |
| Max Operating Altitude (meters / feet) | 3000 / 9842 | |
| Storage Temperature (Celsius/Fahrenheit) | -10 ~ 50 / 14 ~ 122 | |
| Storage Humidity (%) | 20 ~ 80 | |
| Security | Kensington Lock Port™, Security Bar, Keypad Lock, PIN & Timer Functions | |
| In the Box | Projector, IR Remote Control (no batteries), Power Cord, VGA Cable, Setup Guide | |
| Safety and Regulatory | CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS | |
| Environmental | WEEE, EU RoHS, China RoHS, CEL, CECP | |
