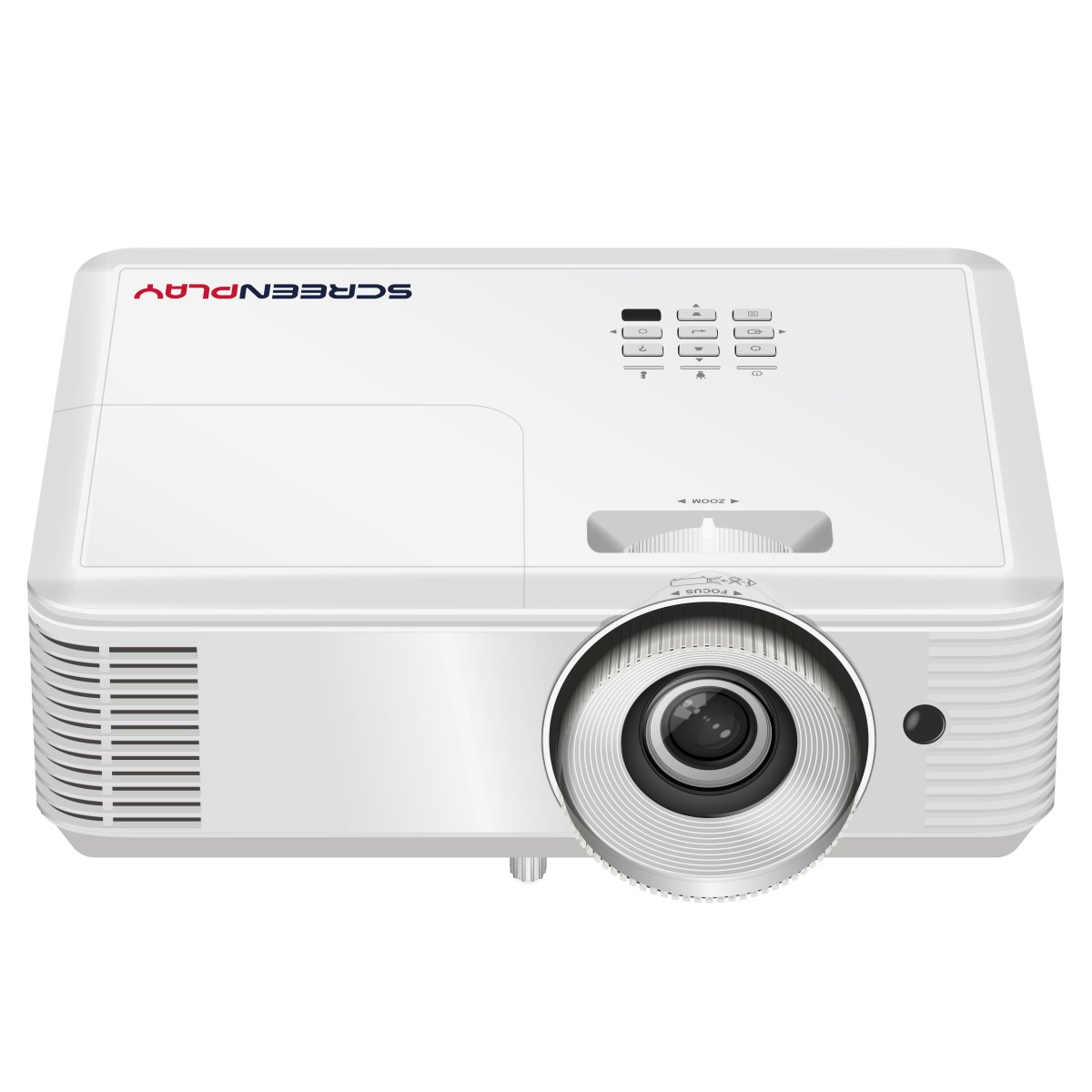

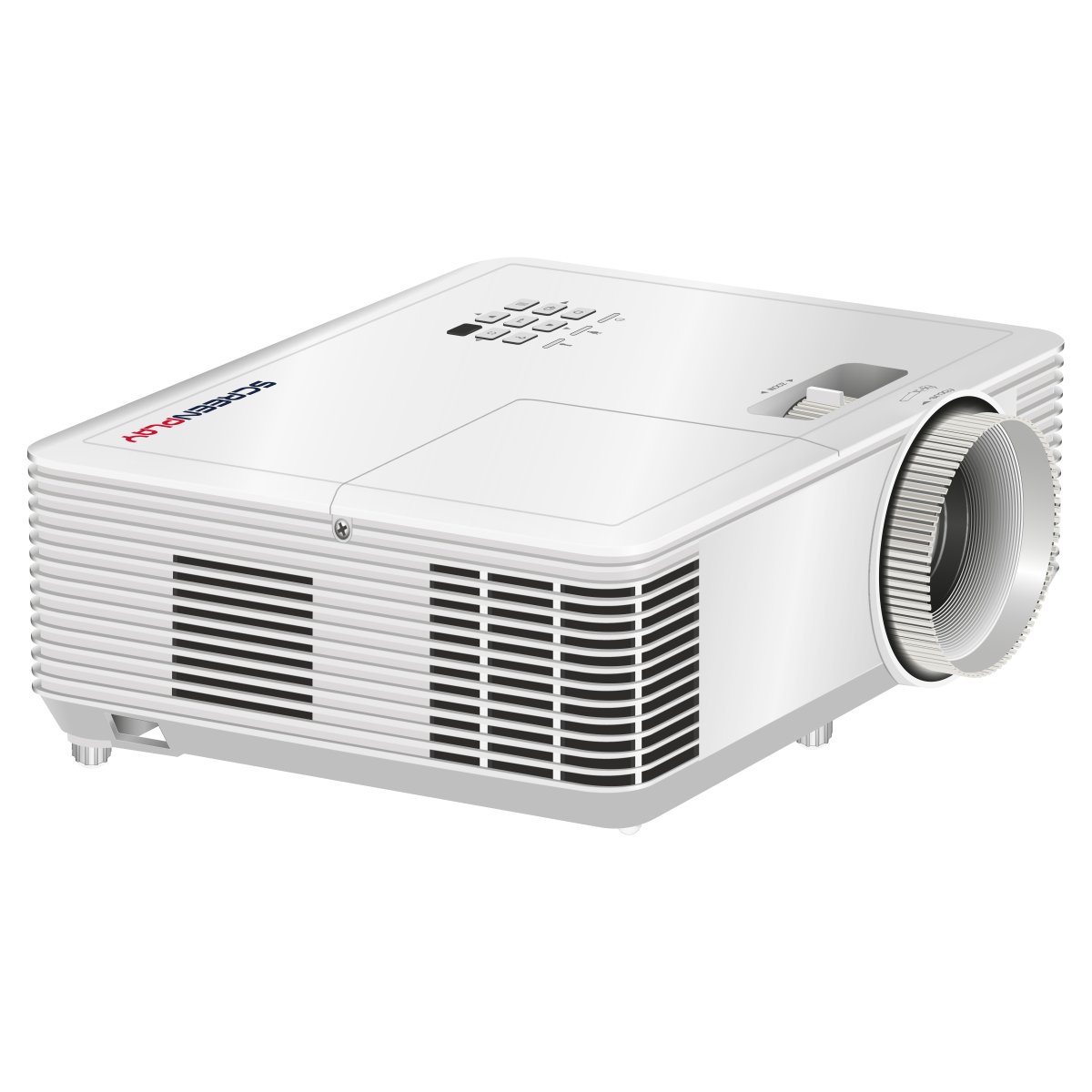

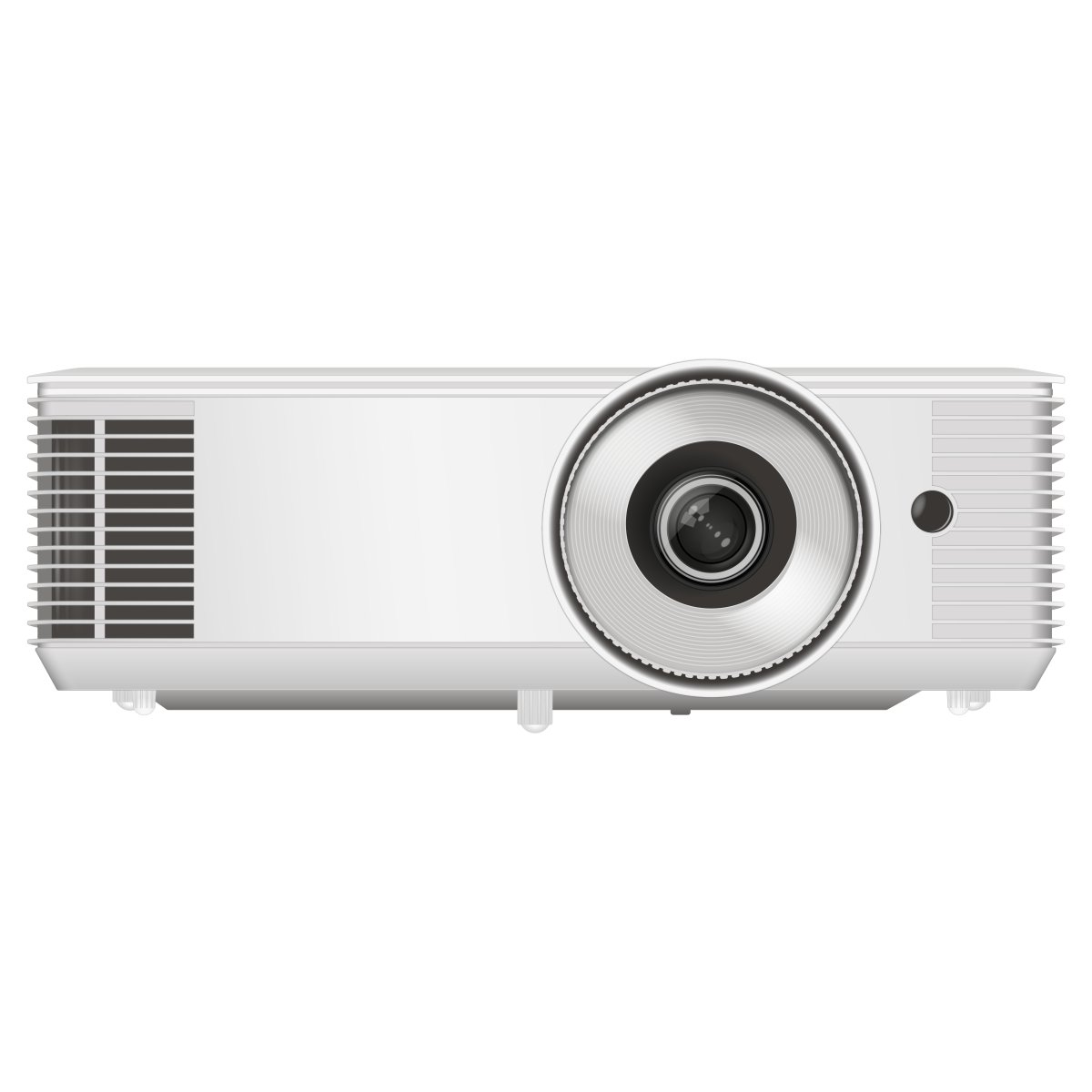

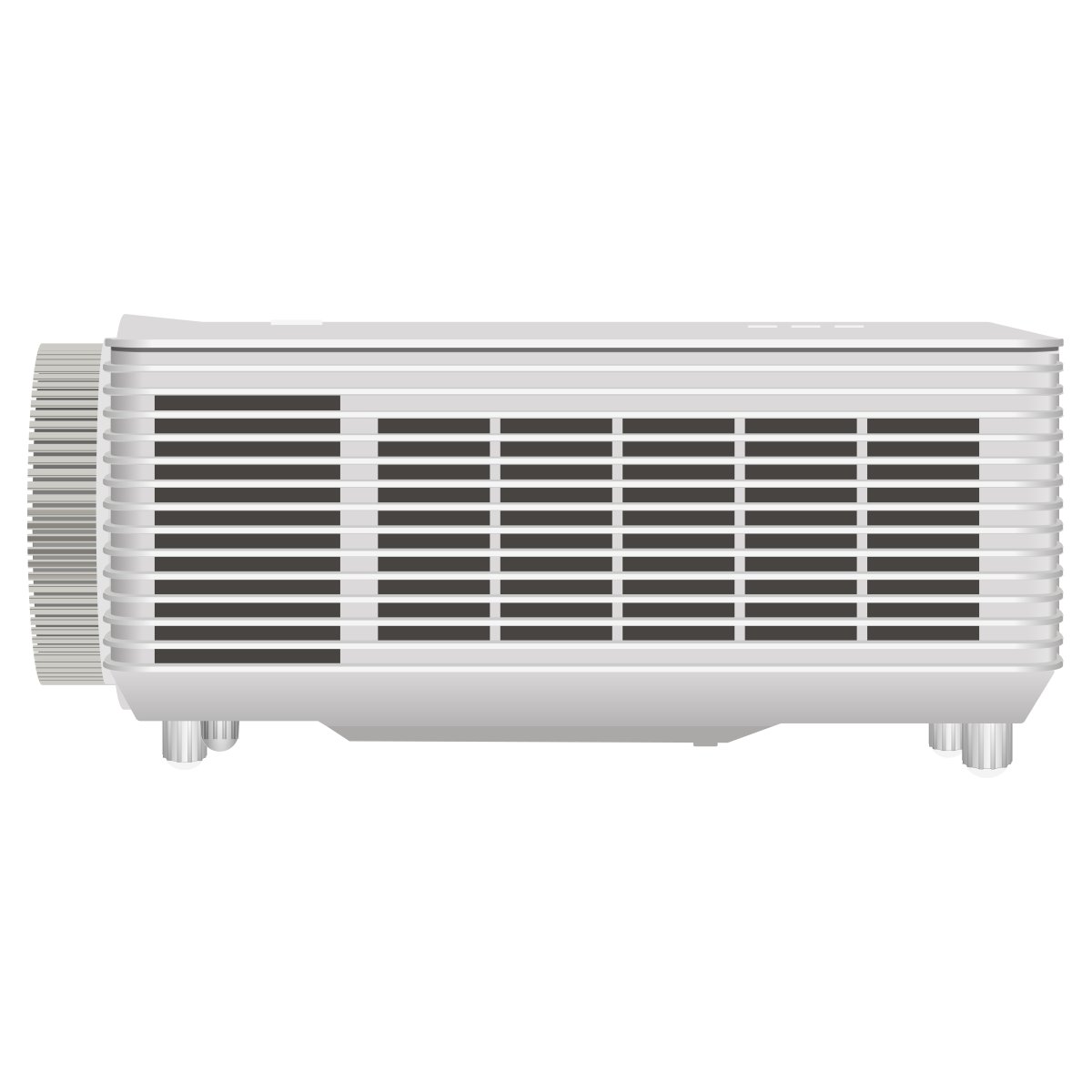

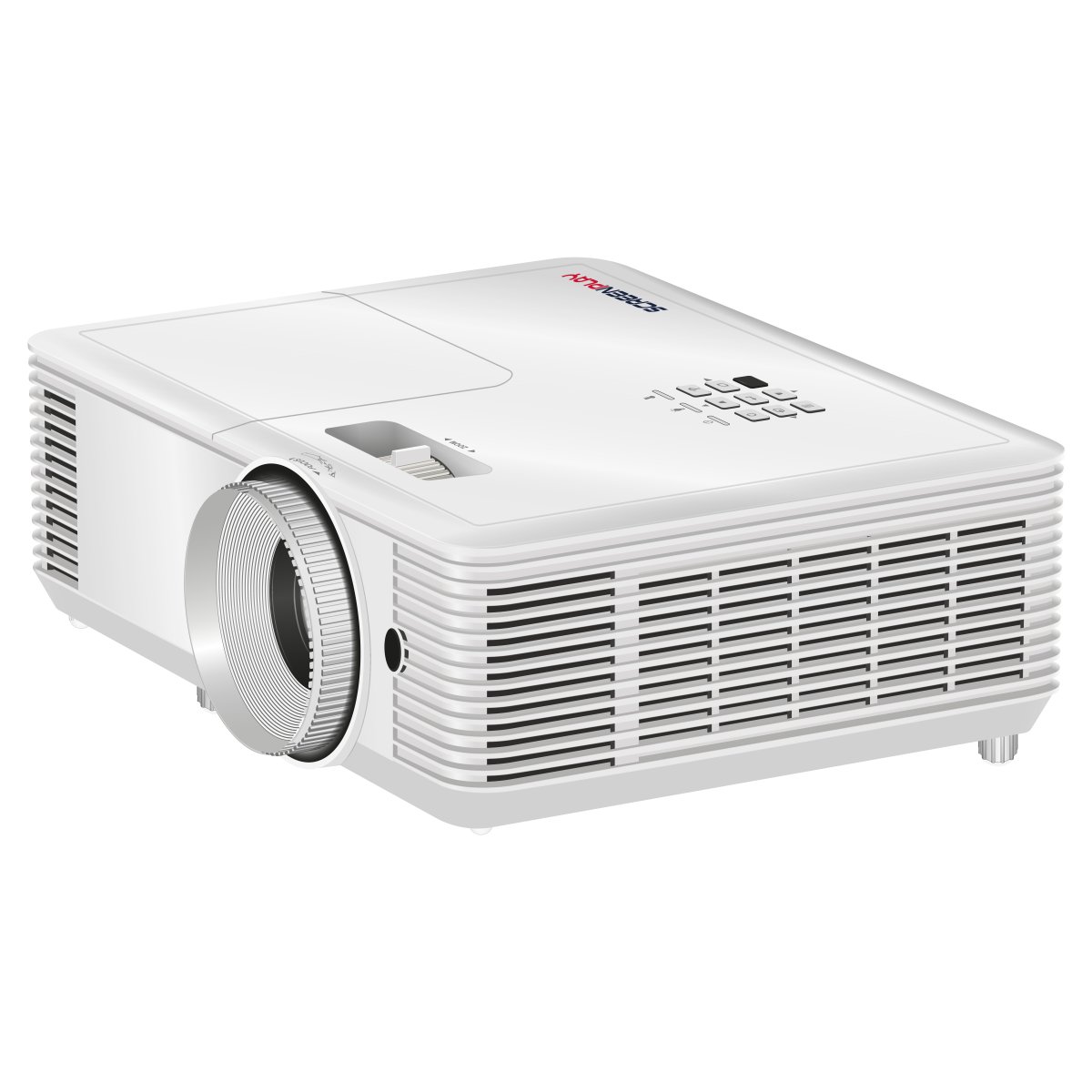

ScreenPlay Vista
SP2234 - XGA
| Projection Technology / Light Source | Texas Instruments DLP® / UHP Lamp |
| Native Resolution / Aspect Ratio | XGA / 4:3 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 4600 |
| Light Source Life Maximum (Hours) | 15000 |
| Product Weight (Kilograms / Pounds) | 2.9 / 6.4 |
SELECT A PRODUCT BELOW
Description
Networked DLP® Projectors with Crestron Connect 2.0
Experience the exceptional performance of ScreenPlay Vista Series Network DLP® projectors. These projectors are designed for business customers and offer high brightness, exceptional lamp life, and superb connectivity.
Whether it is a meeting room, lobby, control room, or classroom, the Vista lineup is your go-to display solution. It delivers clear and eye-catching imagery and integrates seamlessly with your network.
All six models in the ScreenPlay Vista Series meet the Crestron Connected Network Communication Protocols and are compatible with Crestron XiO Cloud® Service.
✨Benefits
Full 3D
Display 3D content from almost any 3D source, including 3D Blu-ray players and the latest game consoles.
USB-A Power for Devices
Power your external devices like Google Chromecast with Amazon TV with the convenient USB-A input on the projector.
Industry-leading Lamp Life
An unprecedented 15,000 hours of lamp life when used in Dynamic Mode. With no filters to replace.
High Brightness
Get better, brighter images on any surface, in any light, with 4400-4700 lumens on the standard throw models and 4000-4300 lumens on short throw models.
Advanced Digital Image Correction
With the new digital edge masking and image shift features – we make getting those final image adjustments perfect.
24/7 Operation
They are designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use are required.
Direct Power On/ Direct Power off
Instant power up when the projector receives an electric current, ideal for use in rooms with a “master” power switch. When you are finished power the unit down and go, no need for lengthy cooling period before your projector can be packed away.
High Contrast Ratio
The high contrast ratio of 30000:1 offers exceptional image clarity and depth, enhancing the overall viewing experience.
Make a Big Impact with Short Throw Models
The ScreenPlay Vista short throw models allow you to project large images even in small spaces, minimising shadows and obstructions. This ensures that visuals are clear and bright to leave a lasting impression.
| Image | ||
|---|---|---|
| Uniformity (%) | 80 | |
| Vertical Sync. Range (Hz) | 54 ~ 85 | |
| Horizontal Sync. Range (KHz) | 15 ~ 97.55 | |
| Maximum Supported Resolution | 1920 x 1200 | |
| Light Source Life Maximum Hours | 15000 | |
| Light Source | UHP Lamp | |
| Brightness (Lumens) | 4600 | |
| Contrast Ratio | 30000:1 | |
| Aspect Ratio | 4:3 | |
| Pixels | 1024 x 768 | |
| Native Resolution | XGA | |
| Panel Size | 0.55" DMD | |
| Projection Technology | Texas Instruments DLP® | |
| Optical | ||
| Focus Adjustment | Manual | |
| Digital Zoom Demagnification / Magnification | 0.8x ~ 2.0x | |
| Optical Zoom | 1.3:1 | |
| Projection Distance (Meters/Feet) | 1.0 ~ 9.1 / 3.28 ~ 29.85 | |
| Projection Factor | 1.48 ~ 1.93 | |
| Horizontal Keystone Correction | - | |
| Vertical Keystone Correction | ± 40° | |
| Keystone Adjustment | Manual / Automatic | |
| Vertical Lens shift (%) | - | |
| Horizontal Lens shift (%) | - | |
| F-Stop | 2.43 | |
| Focal Length (mm) | 21.85 ~ 24.01 | |
| Image Offset (%) | 115 | |
| Optional Lenses | - | |
| Lens Zoom Adjustment | Manual | |
| Lens | 1.3x | |
| Connectivity | ||

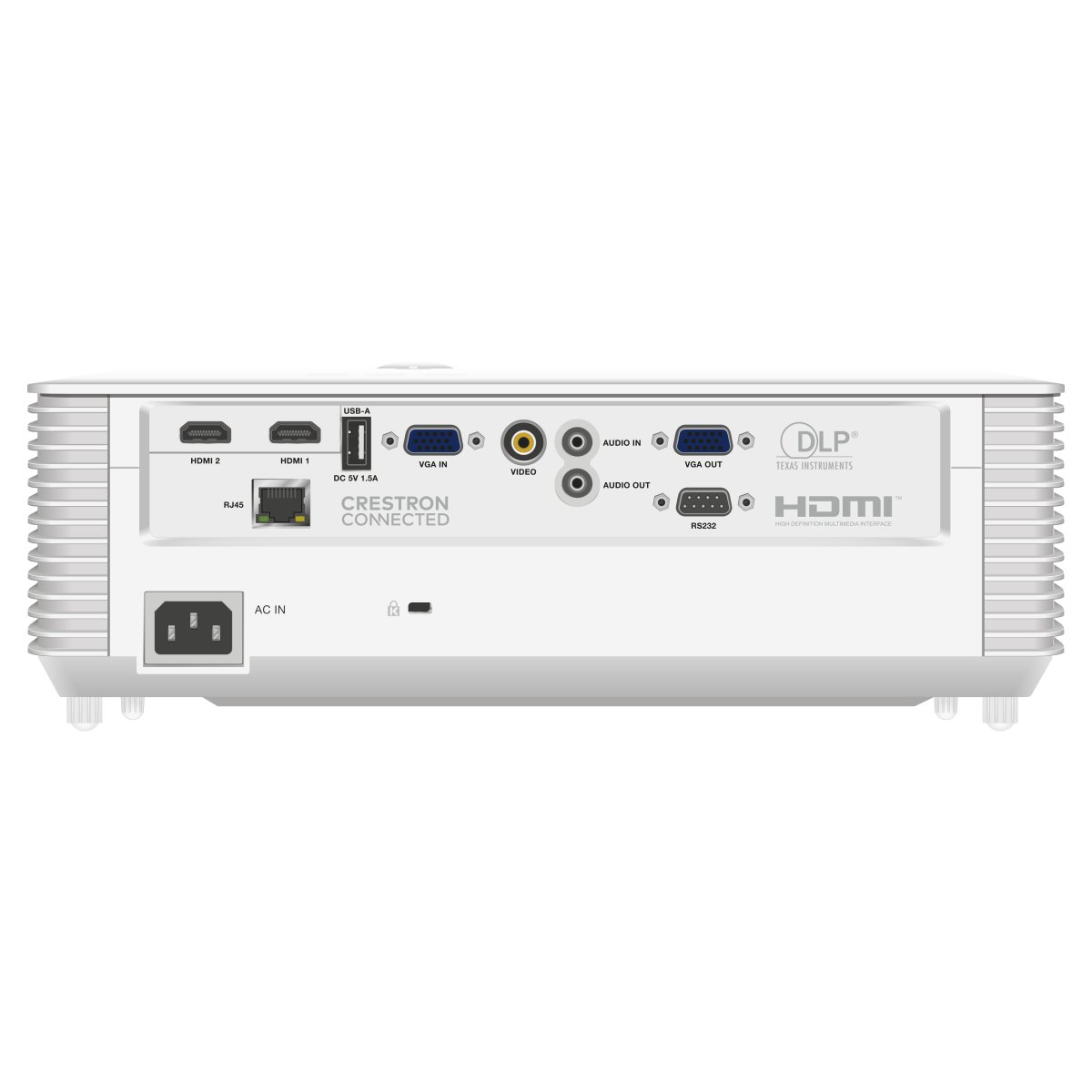

| Inputs | Mini D-sub 15-pin (VGA), Composite Video, 2 x HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service | |
| Outputs | 3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle, Mini D-sub 15-pin (VGA) | |
| Networking & Control | RJ45, RS232 | |
| Embeded System | - | |
| 3D | Full 3D All Major Formats | |
| Power | ||
| Power Supply | 100 ~ 240 V AC; 50 ~ 60 Hz | |
| Power Consumption Max (W) | 267 | |
| Power Consumption Min. (W) | 210 | |
| Power Consumption Network Standby (W) | <2.0 | |
| Power Consumption Standby (W) | <0.5 | |
| General | ||

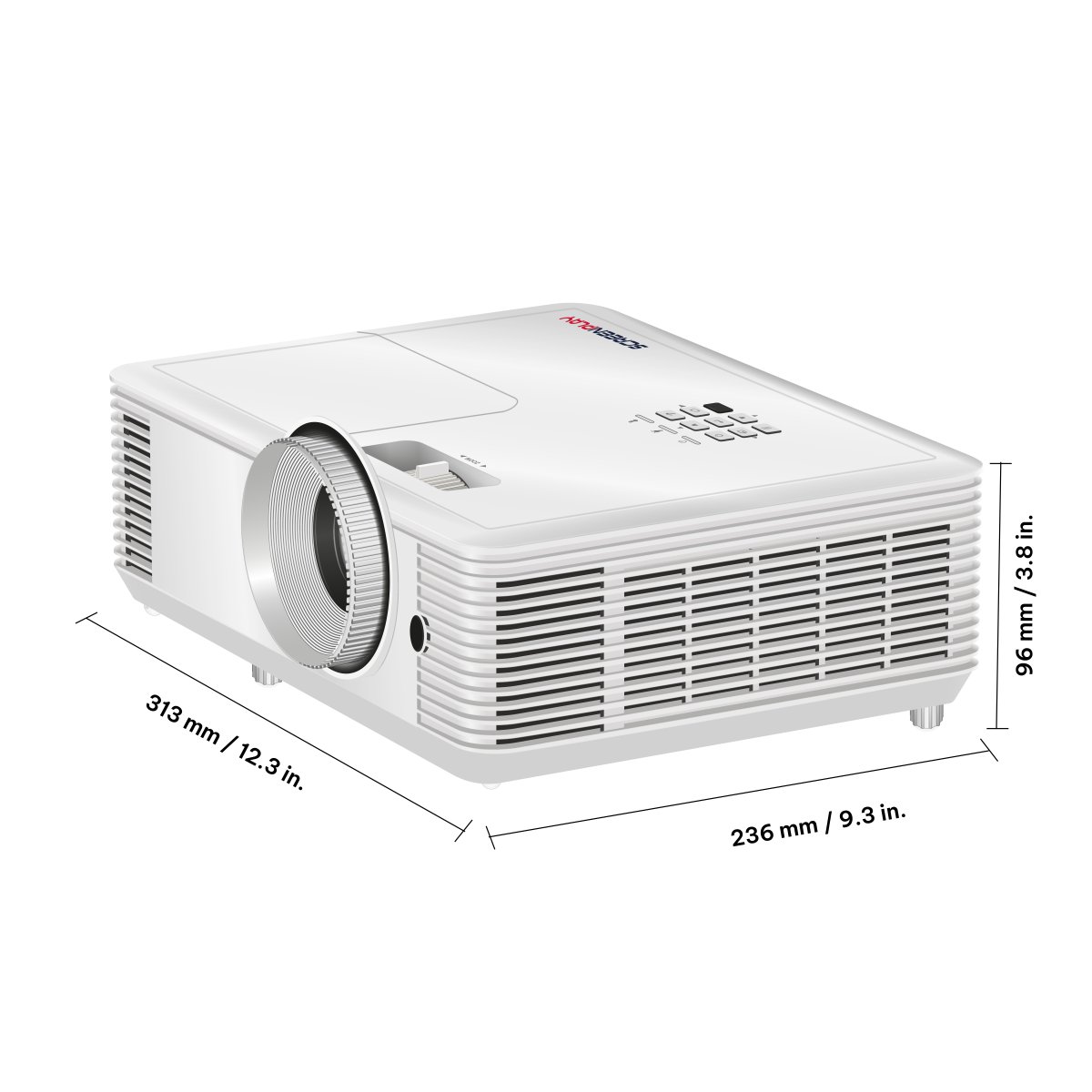

| Product Dimensions (L x W x H) (mm / in) | 313 x 236 x 96.4 /12.4 x 9.3 x 3.8 | |
| Product Weight (Kilograms/Pounds) | 2.9 / 6.4 | |
| Packaged Dimensions (L x W x H) (mm / in) | 395 x 337 x 166 / 15.6 x 13.3 x 6.5 | |
| Packaged Weight (Kilograms/Pounds) | 4.1 / 9.0 | |
| Fan Noise (dB) | 27 | |
| Audio (W) | 1 x 10 | |
| Operating Temperature (Celsius/Fahrenheit) | 5 ~ 40 / 41 ~ 104 | |
| Operating Humidity (%) | 10 ~ 85 | |
| Max Operating Altitude (meters / feet) | 3048 / 10000 | |
| Storage Temperature (Celsius/Fahrenheit) | -10 ~ 60 / 14 ~ 140 | |
| Storage Humidity (%) | 10 ~ 85 | |
| Security | Kensington Security Slot™, PIN Code Lock & Timer | |
| Safety and Regulatory | CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS | |
| Environmental | WEEE, EU RoHS, China RoHS, CEL, CECP | |
